美國Sensidyne Gilr plus是目前全球功能全的智能型空氣采樣泵，Gilr plus具備四種采樣模式，可滿足各個行業對采樣的要求。同時用戶可自定義編程采樣時間段，流量及停止時間等。

-   符合GBZ 2.1-2007、GBZ 159-2004、GB/T 17061-1997對空氣采樣的要求。

-   為用戶提供了接近完美的性能，更大的靈活性和舒適性設計，具有帶背光的LCD顯示、體積小、重量輕、便于攜帶等特點。

-   具有基準型（廣用型）、存儲型、可編程型三種機型可選，基準型-簡單易用、存儲型-可存儲100組數據、可編程型-提供延時啟動。
-   具有多種語言操作界面提示功能：英語、西班牙語、法語、意大利語、荷蘭語、葡萄牙語、德語等多種語言可轉換。
-   具有泵故障自動保護與功能（可選項）。
-   采用可拆卸的Ni-MH可充電電池組供電，可選感性電池或直流電源。
-   符合FM、ATEX、CE本質安全標準。

-    QuadMode空氣采樣技術
-    在采樣泵上實現四種采樣模式，包括高流量恒壓、高流量恒流、低流量恒壓及低流量恒流，并且無須在采樣泵上安裝外置流量適配器

-    自動錯誤功能：當采樣泵運行期間遇到錯誤，它會嘗試由錯誤運行狀態中重啟，以正常采樣

-    溫度及壓力補償功能
-    采樣泵另選配STP補償功能，可以選擇實際或標準大氣條件模式，針對特定的環境條件（溫度及大氣壓）對采樣流量進行修正及補嘗
-    及舒適的設計：體積公有傳統個體空氣采樣泵的1/3，更加輕便，小巧、運行更安靜，并配備有大尺寸的背光屏幕
-    具備實時時鐘及數據記錄功能
-    采樣泵具備實時時鐘，編輯采樣日程，并記錄采樣結果
-    采樣泵通過傳輸基座與電腦連接，將器采樣過程期間的數據下載到電腦作業場所定點毒物采

規格
流量范圍 恒流20～5,000cc/min，無須外置適配器
恒壓1～5,000cc/min，無須外置適配器

流量模式 恒流采樣或高、低流量恒壓采樣

精確度
流量顯示

恒流

恒壓 設定流量的±5％或3cc/min，取較大值
設定流量的±5％或3cc/min，取較大值
背壓的±10％
背壓補償能力
8小時運行 5000cc/min達12英寸H2O背壓

4000cc/min達20英寸H2O背壓

3000cc/min達30英寸H2O背壓
2000cc/min達30英寸H2O背壓
1000cc/min達35英寸H2O背壓
450～1000cc/min達40英寸H2O背壓
20～449cc/min達25英寸H2O背壓

運行時間 不少于8小時

流量故障修正 在背壓規定范圍內，當流量變化超過±5%時會出現故障圖標顯示。若果錯誤超30秒后也無法更正，泵將會停止工作?？蛇x的自動故障功能允許泵嘗試每3分鐘重啟一次，多可重啟10次，或手動暫停運行。
環境條件
溫度范圍
操作溫度
存儲溫度
充電溫度 0℃～45℃
-20℃～45℃
5℃～40℃
濕度范圍
操作濕度
存儲濕度 5～95%，不凝結
5～98%，不凝結
一般
顯示 流量、采樣時間、實際條件下的采樣體積
鍵 6個鍵
指示燈 綠色及紅外LED燈
尺寸 4.3 x 2.4 x 2.4 inches (10.9 x 6.1 x 6.1 centimeters)
重量 581g
電子
電源 可拆式可充電NiMH電池組，選配堿性電池組或DC直流電源
電量顯示 圖標電量顯示
連接界面 通過基座或面板進行操作
基座功能 充電、計算機連接、自動校準
充電時間 少于3.5小時
認證
EN 1232 Compliant
本質安全
US/Canada NRTL (FM)
ATEX/IECEx Class I, Div 1 Groups A, B, C, D, E, F, and G; Class II, Div 1 Zone 0; Class III, T4
II 1 G Ex ia IIC T4
CE
適用指令 ATEX 94/9/EC EMC 2004/108/EC (RFI) LVD 2006/95/EC RoHS Compliant

美國Sensidyne Gilr Plus 空氣采樣泵 選型指導
單臺組 訂貨號
Gilr Plus基礎型     910-0901-US-R
Gilr Plus數據存儲型 910-0902-US-R
Gilr Plus溫度壓力補償型 910-0903-US-R

三臺組

Gilr Plus基礎型     910-0907-US-R
Gilr Plus數據存儲型 910-0908-US-R
Gilr Plus溫度壓力補償型 910-0909-US-R
五臺組
Gilr Plus基礎型     910-0904-US-R
Gilr Plus數據存儲型 910-0905-US-R
Gilr Plus溫度壓力補償型 910-0906-US-R

Description Part Number
SensAlarm Plus, one red strobe 820-0301-01
SensAlarm Plus, one red strobe w/ battery back-up 820-0301-02
SensAlarm Plus, with amber and red strobes 820-0301-03
SensAlarm Plus, with amber and red strobes w/ battery back-up 820-0301-04
SensAlarm Plus, one blue strobe 820-0303-01
SensAlarm Plus, one blue strobe w/ battery back-up 820-0303-02
SensAlarm Plus, one amber strobe 820-0304-01
SensAlarm Plus, with amber and blue strobe w/ battery back-up 820-0305-02
SensAlarm Plus remote sensor kit (100ft mamum) 821-0301-01
HART Communication Card - Installed 821-0302-01
RS-485 Modbus RTU Communication Card - Installed 821-0303-01

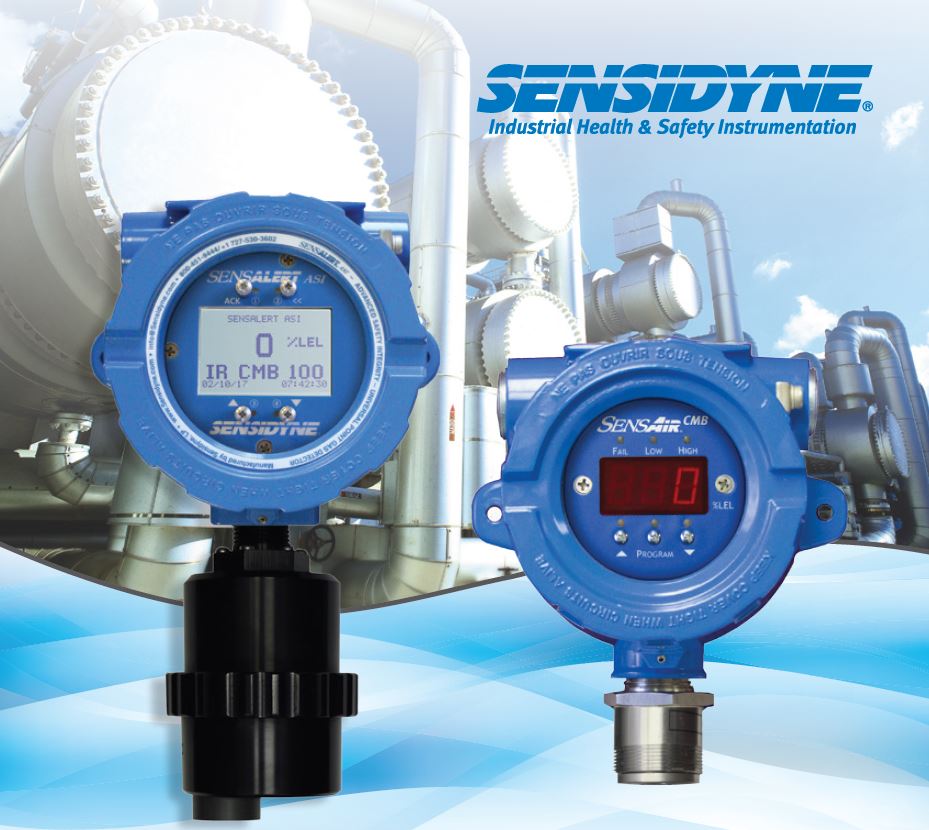

Description Horizontal Vertical
SensAlert ASI Div 2, 2 wire | 3/4” NPT S22-2STH-AA S22-2STV-AA
SensAlert ASI Div 2, 3 wire | 3/4” NPT S22-3STH-AA S22-3STV-AA
SensAlert ASI Div 2, 3 wire with relay card | 3/4” NPT S22-3RTH-AA S22-3RTV-AA
SensAlert ASI Div 2, 3 wire with Modbus | 3/4” NPT S22-3MTH-AA S22-3MTV-AA
SensAlert ASI Div 2, 3 wire with Hart | 3/4” NPT S22-3HTH-AA S22-3VTV-AA
SensAlert ASI Intrinsically Safe, 3 wire | 3/4” NPT S2S-3STH-AA S2S-3STV-AA
SensAlert ASI Div 1, 2 wire | 3/4” NPT S2X-2STH-AA S2X-2STV-AA
SensAlert ASI Div 1, 3 wire | 3/4” NPT S2X-3STH-AA S2X-3STV-AA
SensAlert ASI Div 1, 3 wire with relay card | 3/4” NPT S2X-3RTH-AA S2X-3RTV-AA
SensAlert ASI Div 1, 3 wire with Modbus | 3/4” NPT S2X-3MTH-AA S2X-3MTV-AA
SensAlert ASI Div 1, 3 wire with Hart | 3/4” NPT S2X-3HTH-AA S2X-3HTV-AA
Description Part Number
Description Part Number
Alarm Annunciator, Dual Strobes, High Red, Low Amber, includes power supply 821-0016-02
Alarm Annunciator, Hi Red, Low Amber, and Sounder, including power supply 821-0016-03
Alarm Annunciator, Hi Red, Hi Sounder, including power supply 821-0016-04
Alarm Annunciator, Hi Red, Hi Sounder, no power supply 821-0016-08
Alarm Annunciator, Hi Sounder, Low Amber strobe, includes power supply 821-0016-01
3-Port Power Module, 10 watt, 24 VDC (85-265 VAC) 821-9904-01
Class 1, Division 2, 123-230 VAC Strobe only for mounting by user – Red 208-0003-04
Red GP Strobe Lamp for mounting by user 12-48 VDC, general pure 7017414
Amber GP Strobe Lamp for mounting by user 12-48 VDC, general pure 208-0002-02
Blue GP Strobe Lamp for mounting by user 12-48 VDC, general pure 208-0002-06
GP 110 dB Horn for mounting by user 9-28 VDC, general pure 7017380

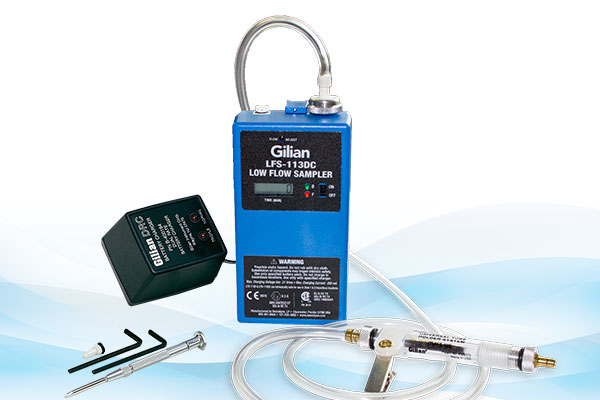

Gilian LFS-113 Low Flow Personal r Sampling Pump (1 - 350 cc/min)

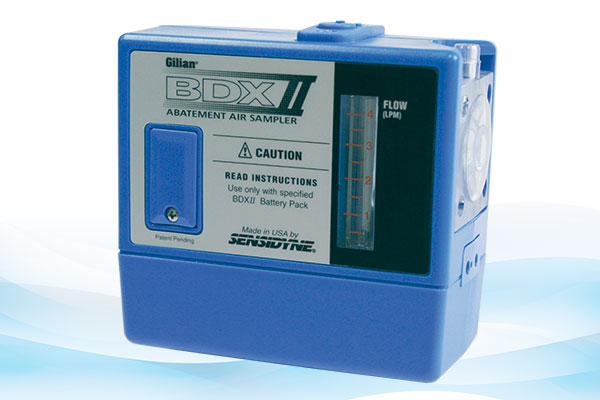

Gilian BDX-II Personal r Sampling Pump (500 - 3,000 cc/min)
Gilian rCon-2 Area r Sampling Pump (2 - 30 LPM)
Gilian 5000 Personal r Sampling Pump (20 - 5,000 cc/min)
Gilian Gilr-3 and Gilr-5 r Sampling Pumps (1 - 3,000 / 1 - 5,000 cc/min)
Gilr Plus Personal r Sampling Pump (1 - 5,100 cc/min)
Gilian 800i r Sampling Pump (200 - 800 cc/min)
Gilian 10i r Sampling Pump (4 - 10 LPM)
Gilian 12 r Sampling Pump (4 - 12 LPM)
Gilian Power Series Pumps
Gilian CONNECT Software

Description Part Number

Pumped Sample Draw with 24 VDC power supply 821-0231-01
Aspirated Sample Draw with 24 VDC power supply 821-0232-01
Pumped Sample Draw without power supply 821-0231-02
Aspirated Sample Draw without power supply 821-0232-02
Coalescing filter & Close Nipple 1/8 NPT 821-0233-01

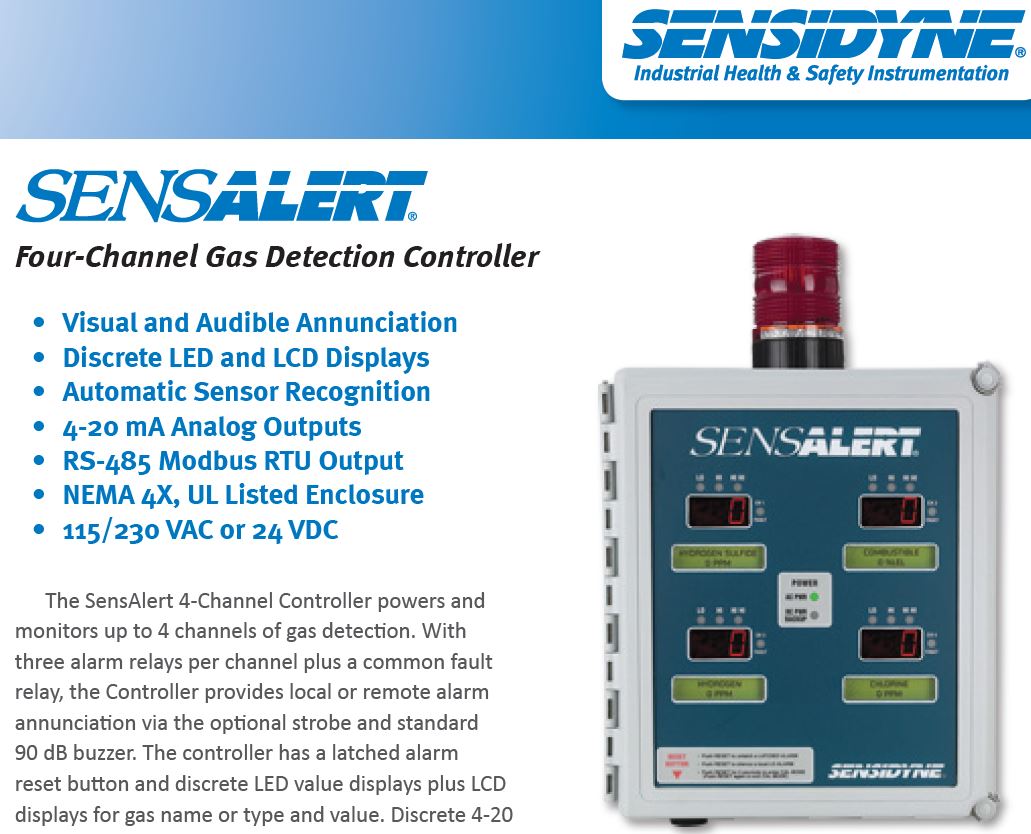

Description Part Number
SensAlert 4-Channel Controller 7013227-3
SensAlert 4-Channel Controller with Red Strobe 7013227-4
SensAlert 4-Channel Controller with Dual Strobe Call Factory
SensAlert 4-Channel Controller for Use with Sensr 7013227-5

Part # Description
009824-57 Ammonia, 25 ppm in Nitrogen
009824-38 Ammonia, 50 ppm in Nitrogen
009824-78 Ammonia, 150 ppm in Nitrogen
009824-67 Ammonia, 300 ppm in Nitrogen
009824-4 Carbon Monode, 50 ppm in Nitrogen
009824-53 Chlorine, 2 ppm in Nitrogen
009824-34 Chlorine, 5 ppm in Nitrogen
009824-44 Chlorine, 10 ppm in Nitrogen
009824-56 Hydrogen Chloride, 5 ppm in Nitrogen
009824-37 Hydrogen Chloride, 10 ppm in Nitrogen
009824-42 Hydrogen Chloride, 50 ppm in Nitrogen
009824-54 Hydrogen Cyanide, 10 ppm in Nitrogen

Part # Description

009824-79 Hydrogen Cyanide, 25 ppm in Nitrogen
009824-33 Hydrogen Sulfide, 25 ppm in Nitrogen
009824-10 Hydrogen Sulfide, 50 ppm in Nitrogen
009824-6 Hydrogen, 2 %vol / 50 %LEL in r
009824-2 Methane, 1.5 %vol / 30 %LEL in r
009824-3 Methane 2.5 %vol / 50 %LEL in r
009824-61 Propane 1.05%Vol / 50 %LEL in r
009824-8 Sulfur Diode, 5 ppm in Nitrogen
009824-39 Sulfur Diode, 10 ppm in Nitrogen
009824-12 Zero r, 100% Volume,
009824-15 Zero Gas for Infrared 100% Nitrogen
009824-25 Zero Gas for others incl. IR, 20.9% O2

ORDERING INFORMATION
Description Part Number

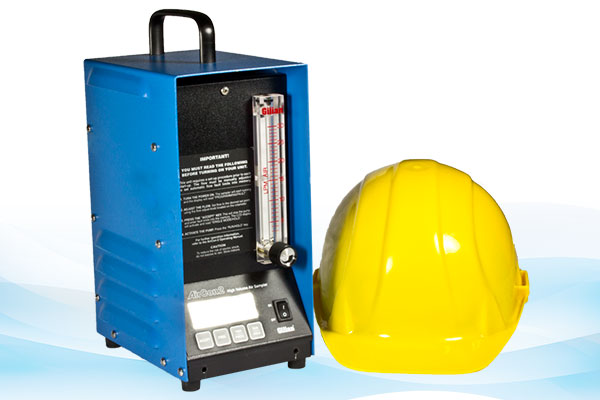

rcon-2 DC-Programmable, High Volume Sampler訂貨號801012-100
Power Module 120VAC/230/VAC/DC [without plug] 訂貨號801000-1
Power Module 120VAC/230/VAC/DC [with 120VAC U.S. plug]訂貨號801000-2
Power Module 120VAC/230/VAC/DC [with Euro plug]訂貨號801000-3
Battery Pack (4-hour)訂貨號801001
Hose Coil訂貨號200456
Hose Support Tip訂貨號200457
Sampling Mast.訂貨號401036
Hose for 72” Sampling Mast訂貨號202046-72
A.C. Plug, U.S訂貨號401562
Carrying Case (22” x 16” x 8訂貨號801171
Battery Charging Jack Cover訂貨號202783
Description Part Number
Gilian 12 Starter Kit - EU Cord訂貨號 910-1601-EU
Gilian 12 Starter Kit - No Cord訂貨號 910-1601-NO
Gilian 12 Starter Kit - UK Cord訂貨號 910-1601-UK
Gilian 12 Starter Kit - US Cord訂貨號 910-1601-US
Gilian 12 Five Pack Kit - EU Cord訂貨號 910-1605-EU
Gilian 12 Five Pack Kit - No Cord訂貨號910-1605-NO
Gilian 12 Five Pack Kit - UK Cord訂貨號. 910-1605-UK
Gilian 12 Five Pack Kit - US Cord訂貨號. 910-1605-US
Gilian 12 Single Charger 100-240Vac, 50-60 Hz, US Cord訂貨號811-0802-01
Gilian 12 Gilian 12 Single Charger 100-240Vac, 50-60 Hz, Euro Cord訂貨號811-0802-02
Single Charger 100-240Vac, 50-60 Hz, UK Cord訂貨號 811-0802-03
Gilian 12 Single Charger 100-240Vac, 50-60 Hz, No Cord訂貨號298-0013-01
Battery Pack訂貨號783-0017-01
Tubing, 36”, 3/8” ID訂貨號811-1501-01
Filter Screen (with O-Ring)訂貨號811-1502-01

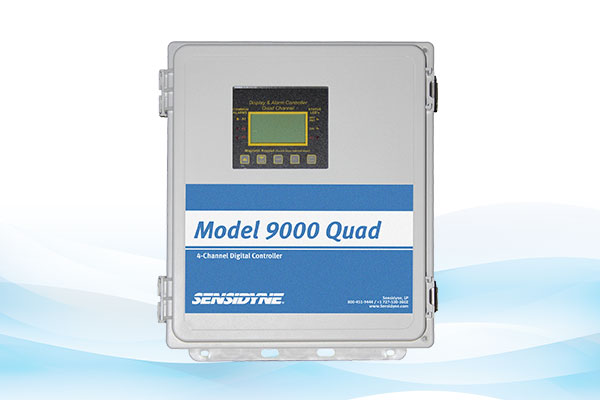

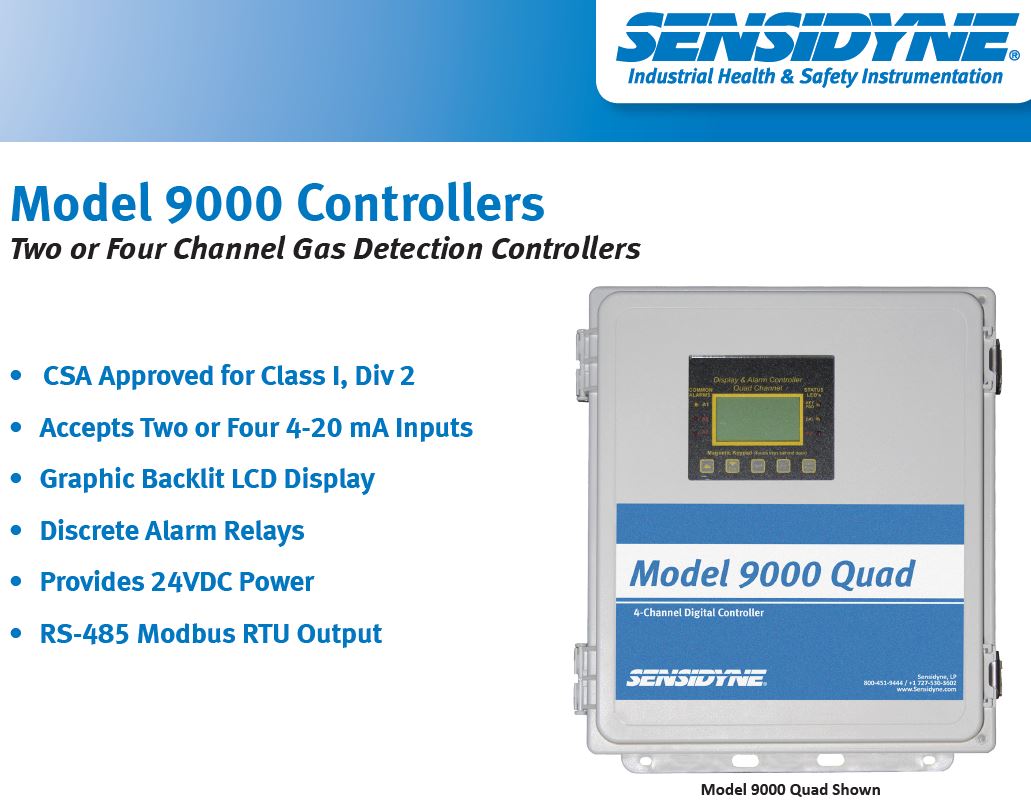

Model 9000 Quad - 4 Channel Controller
Model 9000-Quad Standard訂貨號 820-0103-01
Model 9000-Quad with Piezo 訂貨號 820-0103-02
Model 9000-Quad with Strobe........................................ 820-0103-03
Model 9000-Quad with Piezo & Strobe.......................... 820-0103-04
Model 9000-Quad Standard - Stnless Steel.................. 820-0104-01
Model 9000-Quad with Piezo - Stnless Steel................ 820-0104-02
Model 9000-Quad with Strobe - Stnless Steel.............. 820-0104-03
Model 9000-Quad with Piezo & Strobe - Stnless Steel.820-0104-04
Model 9000 Dual - 2 Channel Controller
Model 9000 Dual Standard訂貨號.. 820-0105-01
Model 9000 Dual with Piezo 訂貨號 820-0105-02
Model 9000 Dual with Strobe訂貨號 820-0105-03
Model 9000 Dual with Piezo & Strobe............................ 820-0105-04
Model 9000 Dual Standard - Stnless Steel.................... 820-0106-01
Model 9000 Dual with Piezo - Stnless Steel.................. 820-0106-02
Model 9000 Dual with Strobe - Stnless Steel................ 820-0106-03
Model 9000 Dual with Piezo & Strobe - Stnless Steel... 820-0106-04
Ordering Information
1/2 width 19 inch rack / panel mount (shown below).................... 820-0108-01

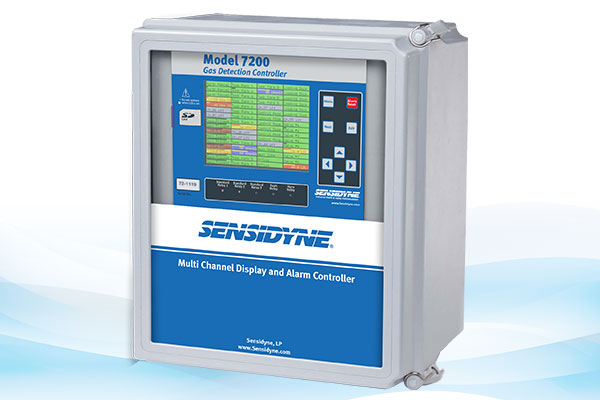

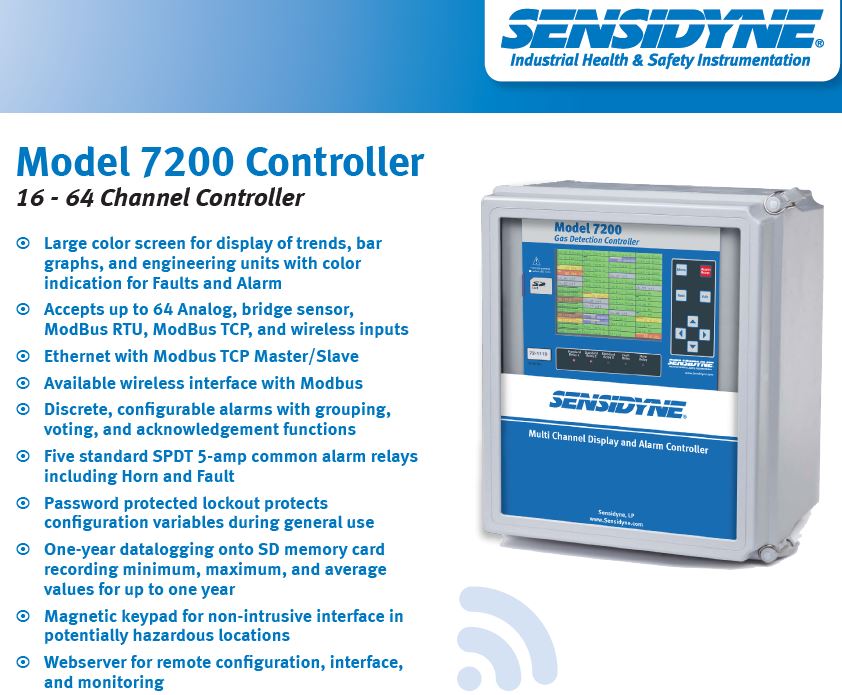

Full width 19 inch rack mount (1, Model 7200, 64-ch).................... 820-0109-01
Full width 19 inch rack mount (2, Model 7200’s, 128- ch).............. 820-0109-02
NEMA 4X large fiberglass wall mount訂貨號. 820-0107-04
NEMA 4X 316 SS wall mount訂貨號820-0107-02
NEMA 7 explosion-proof wall mount訂貨號.. 820-0107-03
NEMA 4X compact fiberglass wall mount訂貨號820-0107-01
600W power supply (required)訂貨號 299-0037-01
Description Part Number
Four Channel Controller訂貨號7013227-3
Four Channel Controller w/ Strobe訂貨號7013227-4
Sensr Compatible Four Channel Controllers
Four Channel Controller.訂貨號7013227-5
Four Channel Controller w/ Strobe訂貨號7013227-6

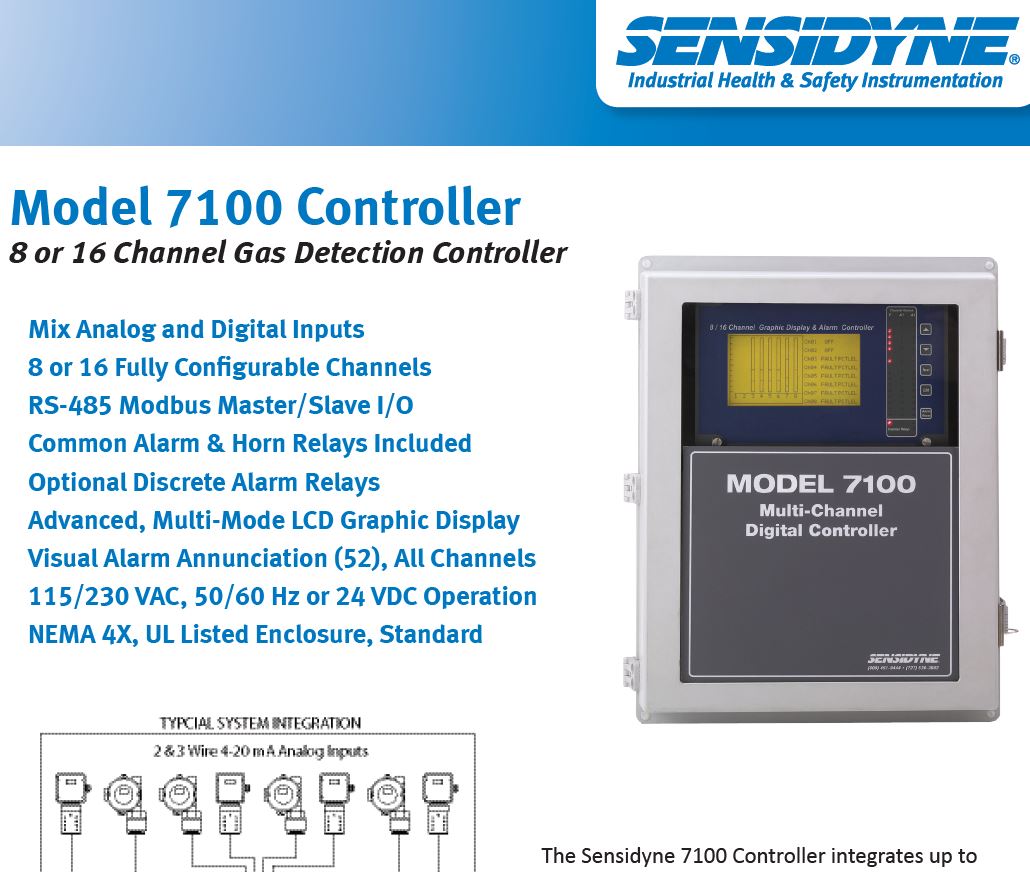

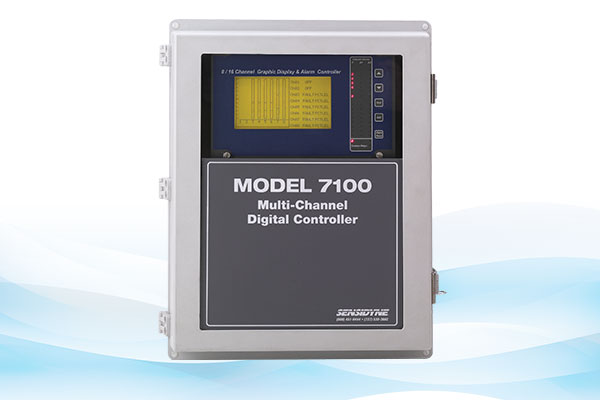

Description Part Number
7100 NEMA 4X Controller 訂貨號 7013931-1
7100 Rack Mount Controller 訂貨號. 7013931-2
7100 XP Controller 訂貨號7013931-3
7100 NEMA 4X 316 Stnless Controller 訂貨號 7013931-4
Accessories
Auliary Alarm 1, Alarm 2 & Horn Relay Board訂貨號7017436
8 Channel, 4-20 mA Analog Input Board訂貨號7017437
8 Channel, 4-20 mA Analog Output Board訂貨號7017438
8 Channel Discrete 5 amp, Form C Relay Board訂貨號7017439
Alarm Relay Card, 8 SPDT訂貨號 7017524
24 VDC, 150 watt Power Supply訂貨號 7017467
100 db Audible Alarm 訂貨號299-0018-01
Expansion Plate訂貨號7017521
