德國ARMATURENBAU（簡稱AB）公司和MANOTHERM（簡稱MT）公司是一家國際化的公司。ARMATURENBAU公司成立于1903年，德國MANOTHERM（簡稱MT）公司擁有完備的壓力及溫度產品系列：包括雙金屬溫度計、彈簧管壓力表、SF6氣體密度控制器、隔膜壓力表、隔膜密封以及遠程控制等一系列產品。壓力表可測量腐蝕性較強介質的壓力，并能在有劇烈振動和工作環境較惡劣的場合使用。德國制造零部件，經久耐用。應用于石油、化工、冶金、輕工、化纖、食品等工業部門.

德國ARMATURENBAU（簡稱AB）公司和MANOTHERM（簡稱MT）ARMANO壓力表、壓力計、油壓表、禁油表、電接點壓力表、SF6密度計、不銹鋼壓力表、化學密封壓力表、隔爆壓力表、膜片表、膜盒表、差壓表、波登管壓力表

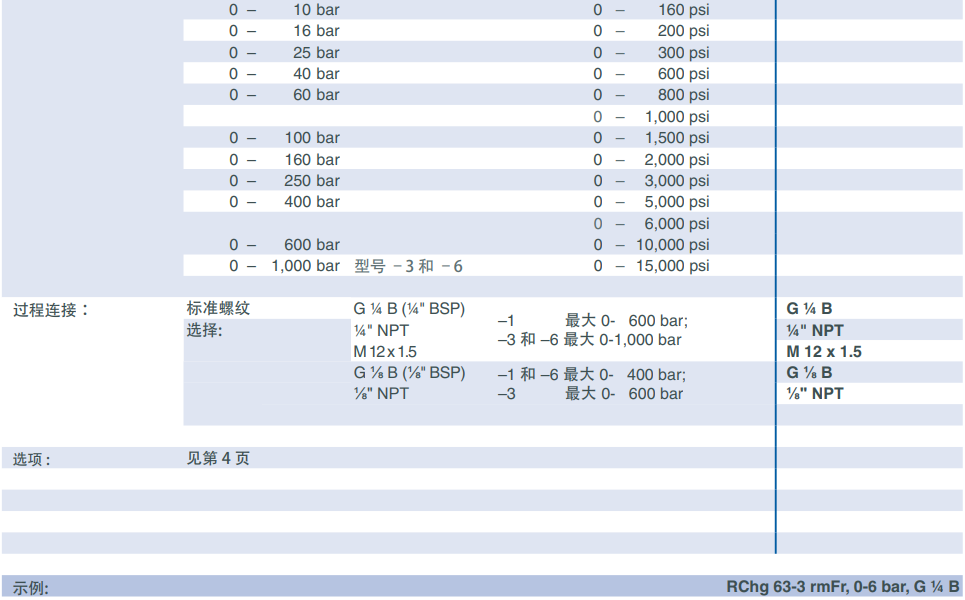

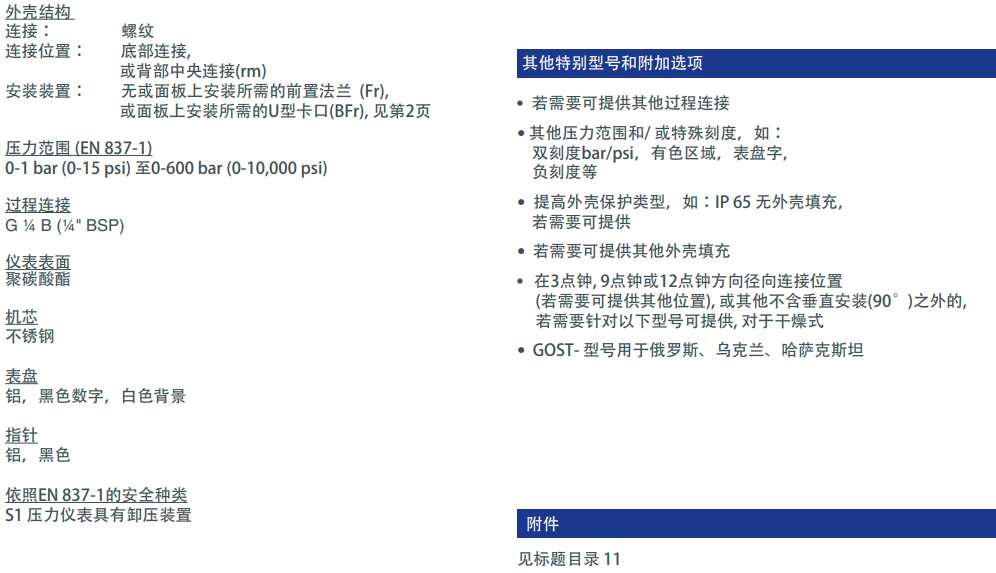

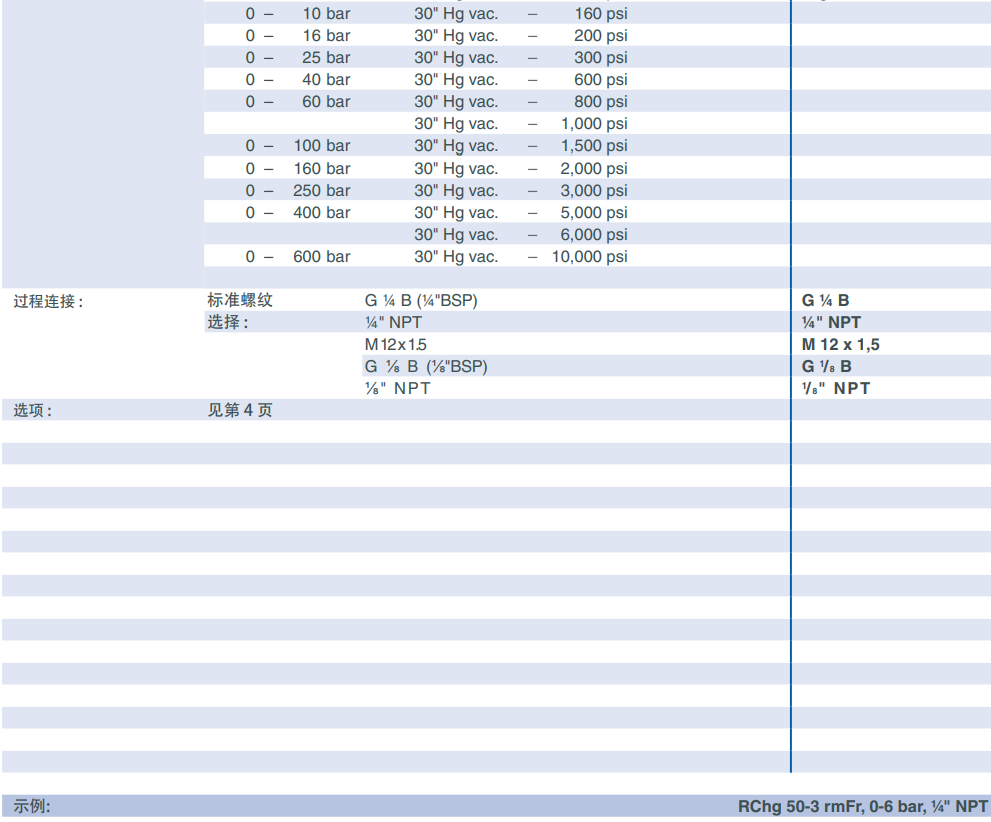

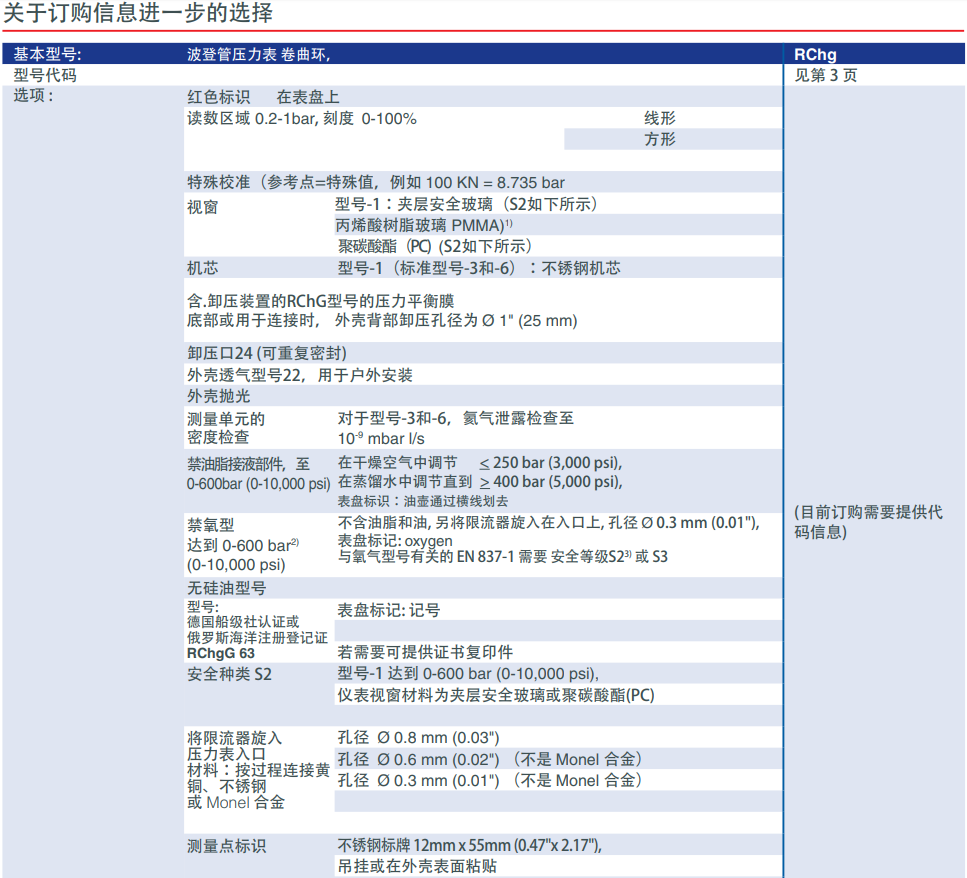

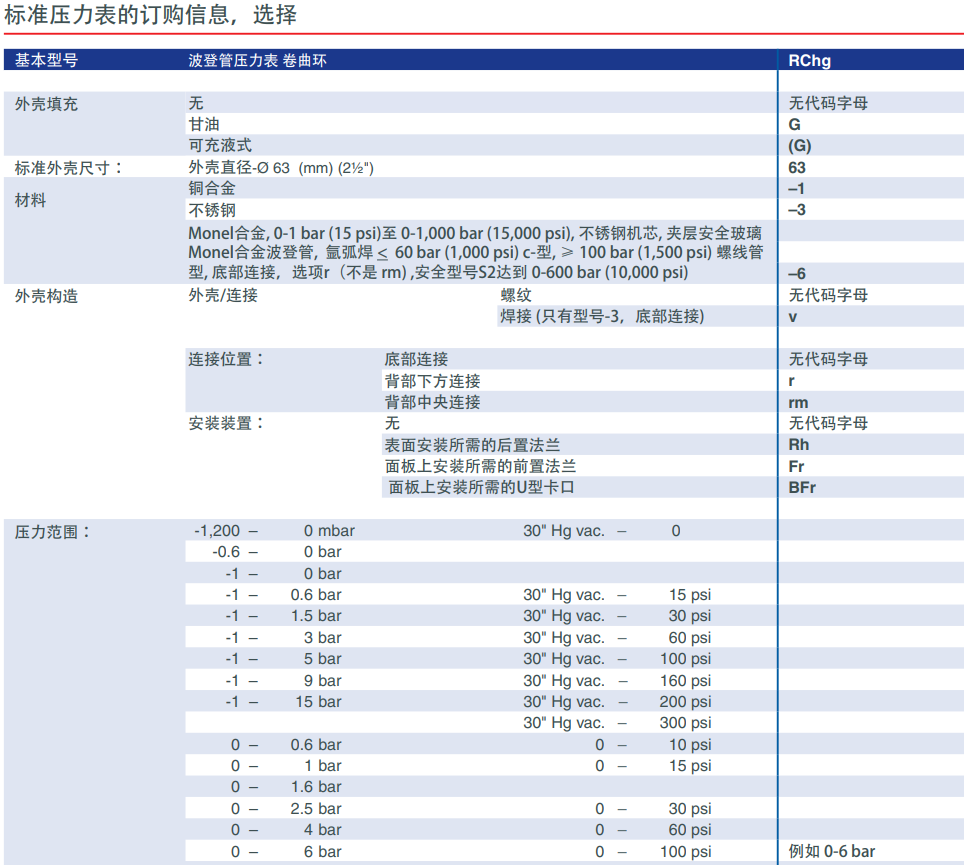

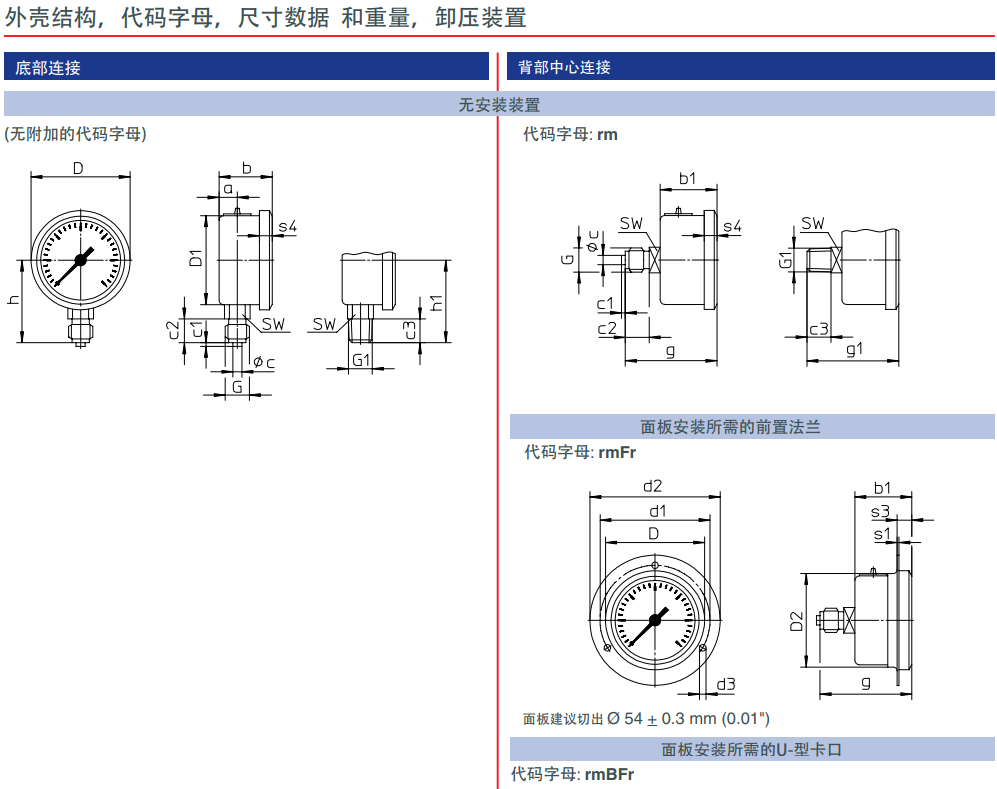

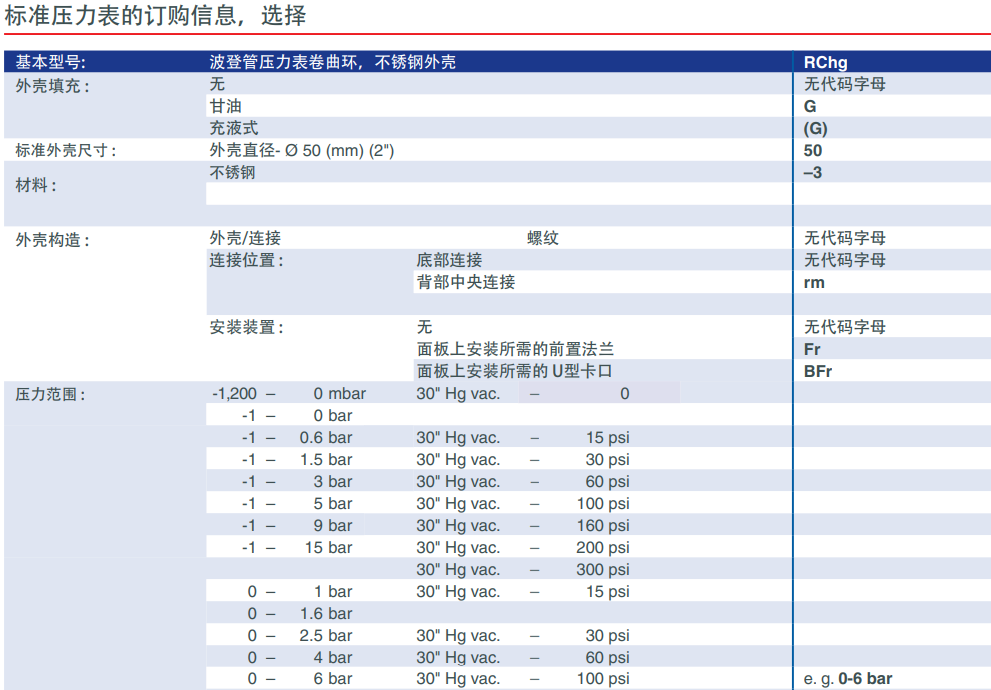

標準型波登管壓力表型號，訂貨示例RChg 50-3 rmFr, 0-6 bar, ?" NPT

RChgG 50-3, 0-250 bar, G1/4B

RChg(G) 50-3, 0-400 bar, G1/4B

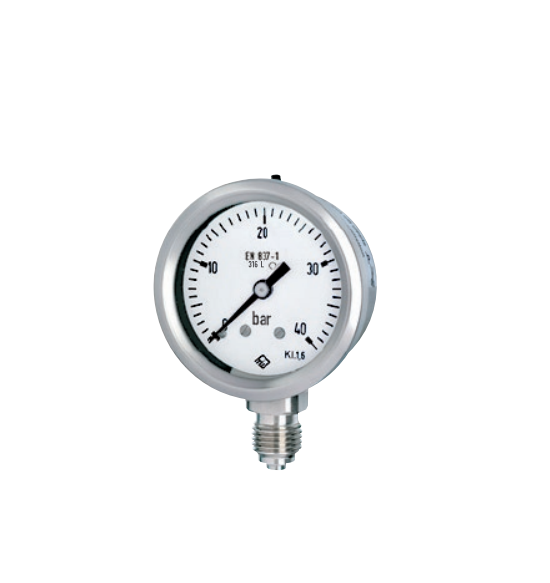

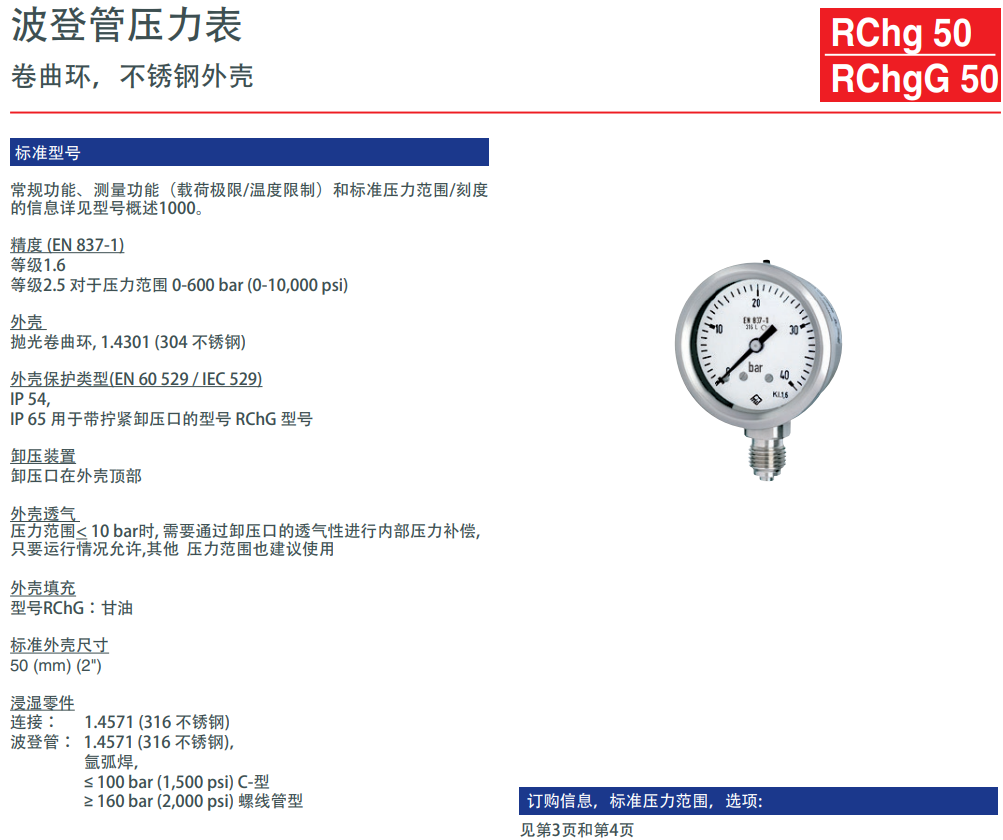

LOW-COST-Manometer RChg50-3 40bar
RChg/RChgG
crimped-on ring case stainless steel
without or with case filling

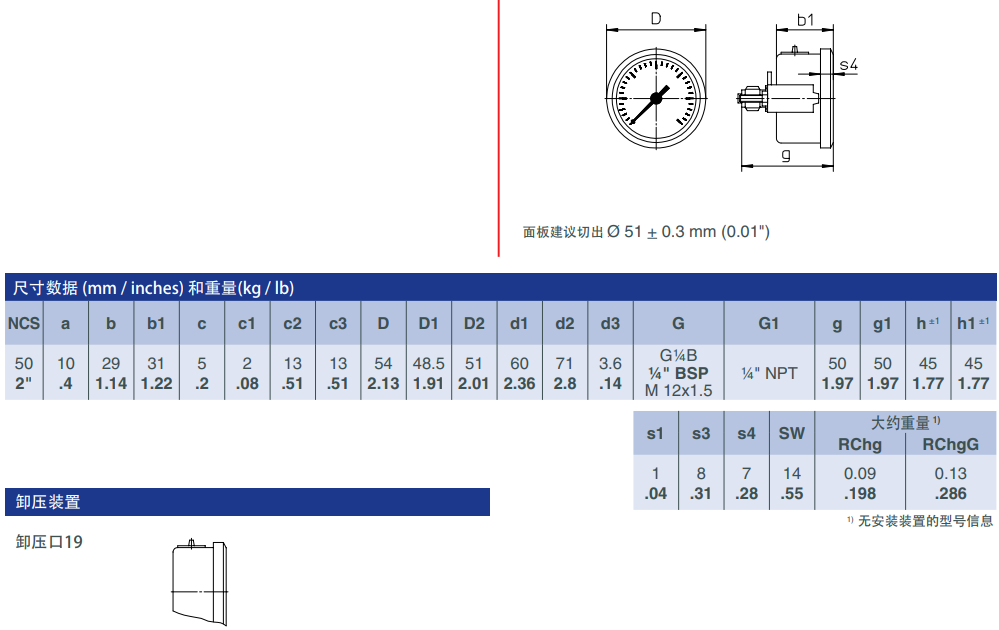

nominal size: 50 (2")

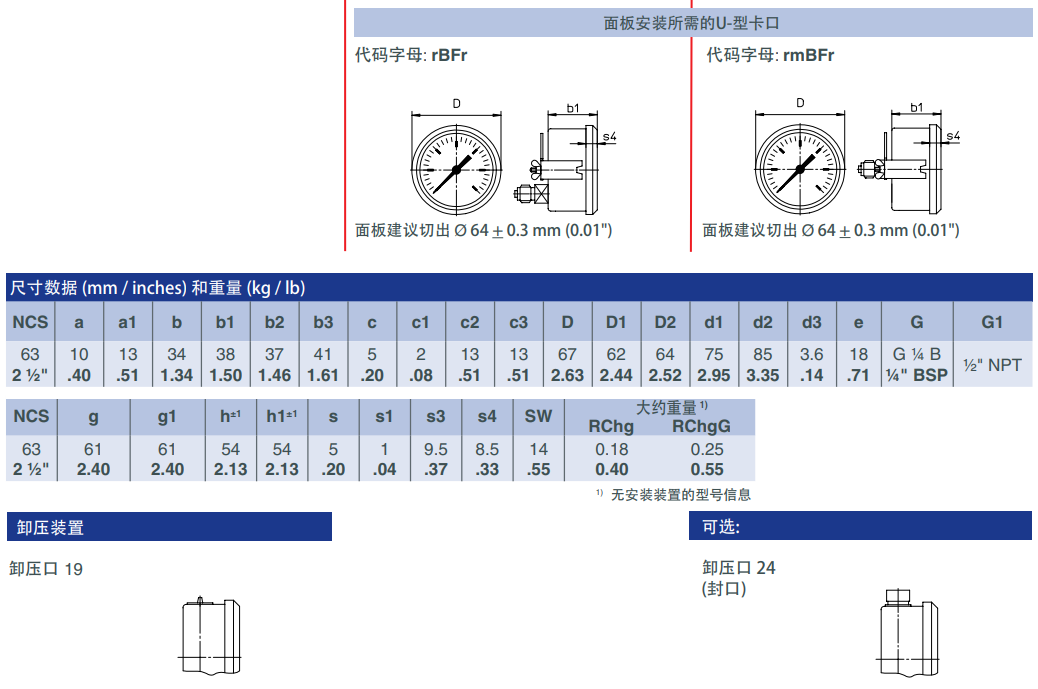

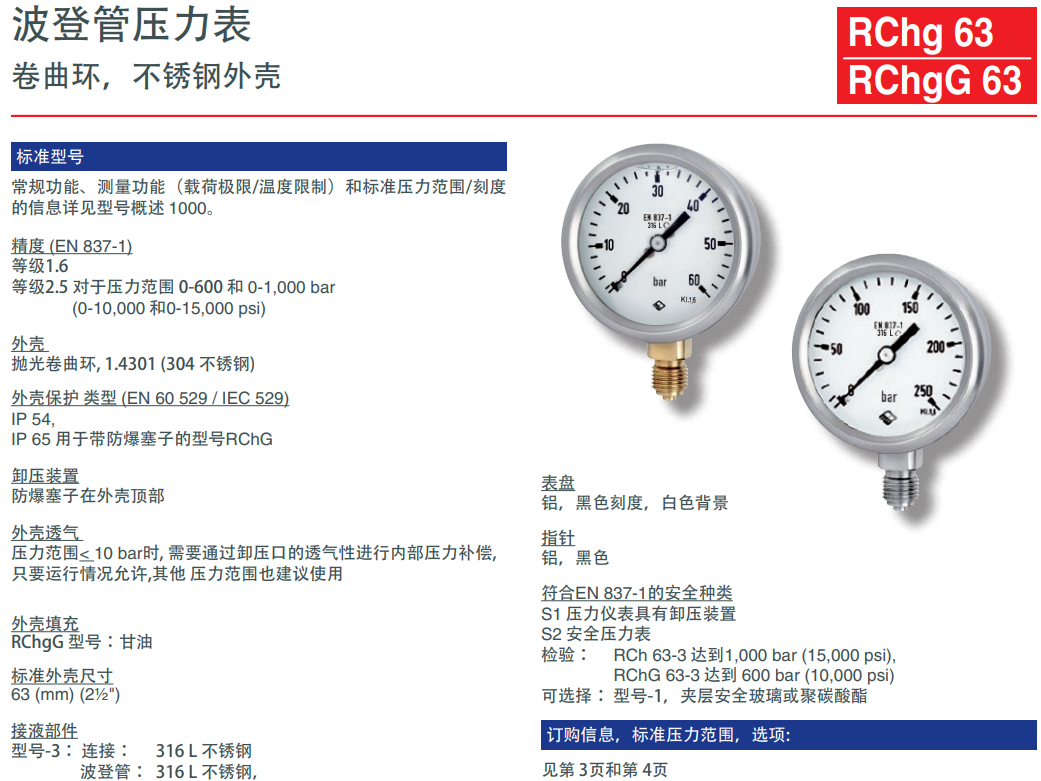

Standard-Manometer RChg63-1 60bar
RChg63/RChgG63-3

crimped-on ring case stainless steel
without or with case filling
nominal size: 63 (2?")

1203 Rohrfeder-Manometer RChg80-1 25bar
RChg/RChgG
crimped-on ring case stainless steel
without or with case filling
nominal size: 80 (3")

Standard-Manometer RChg160-1 Anschluss unten
RChg/RChgG
crimped-on ring case stainless steel
without or with case filling
nominal size: 100 (4"), 125 (5"), 160 (6")

1221 Rohrfeder-Manometer RChg 40-3v B?rdelringgeh?use CrNi-Stahl verschwei?t
RChg/RChgG
crimped-on ring case stainless steel
without or with case filling
case/process connection welded
nominal size: 40 (1?")

Spezial-Manometer - Konservendosen
RCh/RChG
bayonet ring case stainless steel
without or with case filling
nominal size: 63 (2?")

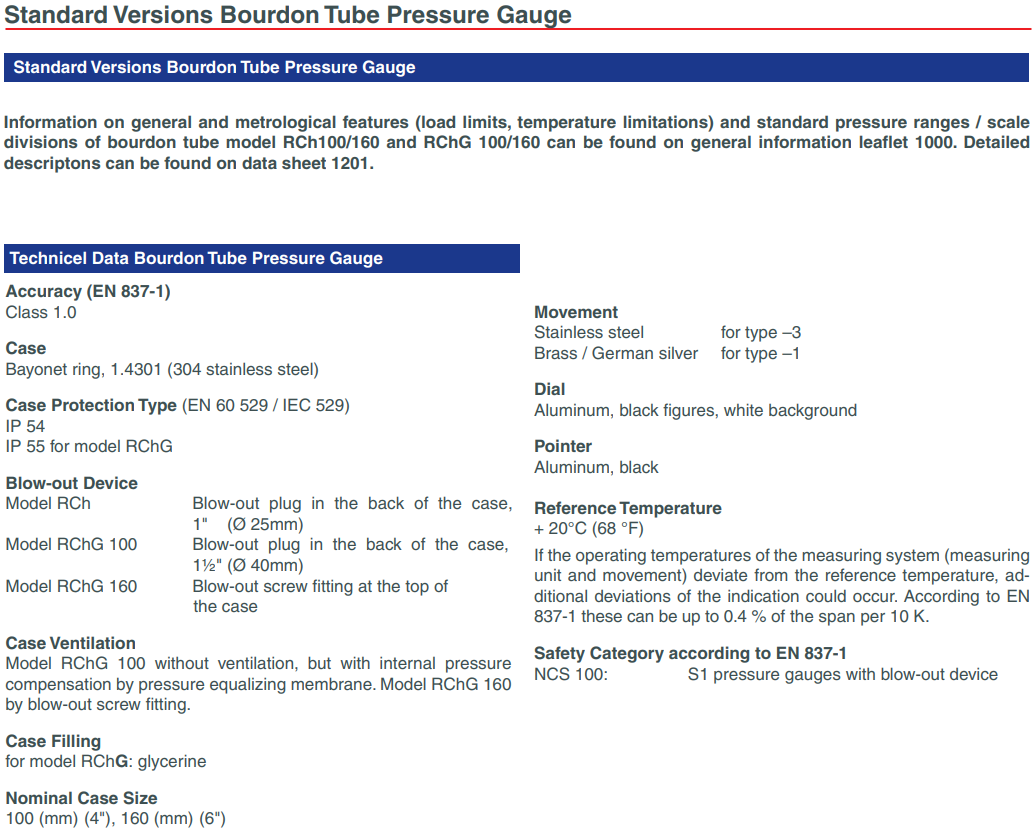

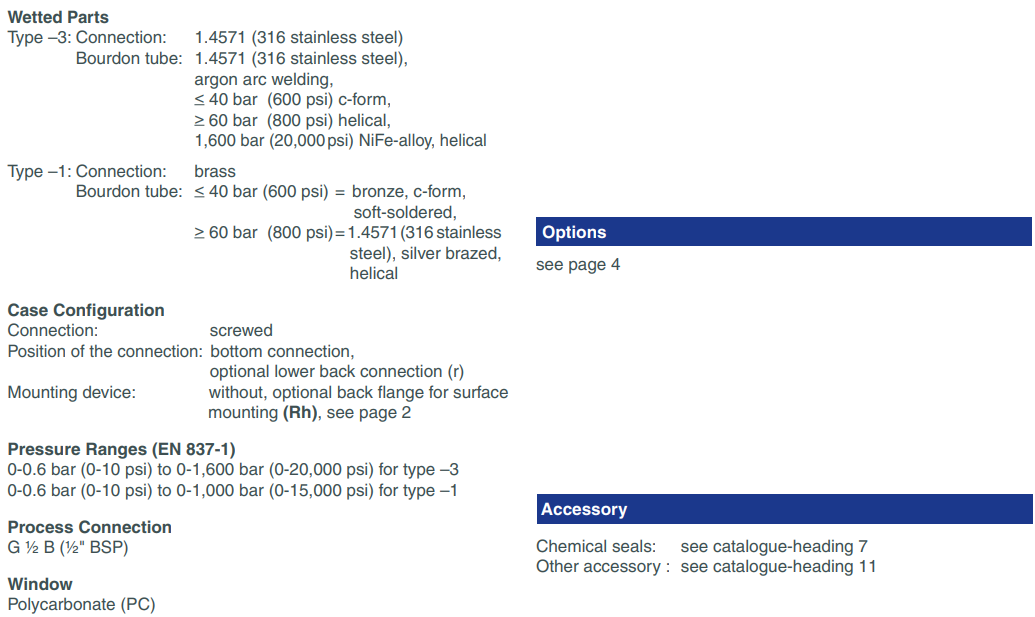

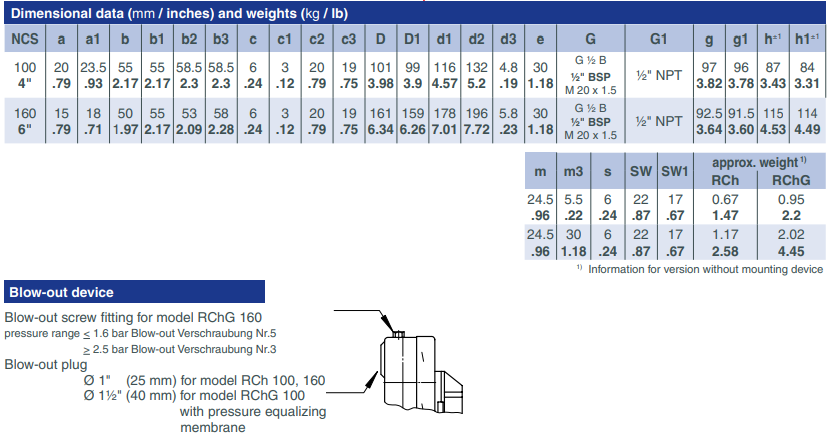

Standard-Manometer RChG100-3 160bar
RCh/RChG
bayonet ring case stainless steel
without or with case filling
nominal size: 100 (4"), 160 (6"), 250 (10")

Standard-Manometer RSCh63-1 25bar
RSCh/RSChG
bayonet ring case stainless steel
safety category S3 according to DIN EN 837-1
without or with case filling
nominal size: 63 (2?")

Standard-Manometer RCh160-3 60bar
RSCh/RSChG
bayonet ring case stainless steel
safety category S3 according to EN 837-1
without or with case filling
nominal size: 100 (4"), 160 (6")

1602 Rohrfeder-Manometer RSChgG 160-3v 0-4 bar B?rdelringgeh?use CrNi-Stahl,  Sicherheits-Manometer
RSChg/RSChgG
crimped-on ring case stainless steel
safety category S3 according to EN 837-1
without or with case filling
nominal size: 160 (6")

Recommendation for pressure gauges for chemical seal attachment
Spezial-Manometer RCh63-3v MDM7340
RCh 63-3vDW/RChG 63-3vDW
bayonet ring case stainless steel
DW-Line (Double Weld)
without or with case filling
nominal size: 63 (2?")

Standard-Manometer RCh100-3v 1-5bar
RCh ...-3v-DW/RChG ...-3vDW
bayonet ring case stainless steel
DW-Line (Double Weld)
without or with case filling
nominal size: 100 (4"), 160 (6")

Low cost pressure gauges
LOW-COST-Manometer RE40
RE
sheet steel black, snap-in window
without case filling
nominal size: 40 (1?"), 50 (2")

LOW-COST-Manometer RE63-1 1-6bar
RE
sheet steel black, snap-in window
without case filling
nominal size: 63 (2?")

LOW-COST-Manometer RE100-1 10bar
RE
sheet steel black, snap-in window
without case filling
nominal size: 100 (4")

LOW-COST-Manometer RgB 63-1 10bar
RgG
crimped-on ring case stainless steel
with case filling
nominal size: 63 (2?")

Special pressure gauges
Spezial-Manometer RSCh100-3 4000bar
RSCh/RSChG
bayonet ring case stainless steel
safety category S3 according to EN 837-1
4,000 bar
without or with case filling
nominal size: 100 (4"), 160 (6")

Spezial-Manometer RPG400psi
RPG/RPGG
plastic screw ring case black
break-proof solid front
blow-out back
US-Standard process gauge
without or with case filling
nominal size: 4?"

Spezial-Manometer RQS96-1 0-6bar
RQS
square case
front narrow rim black
without case filling
nominal size: 96 (3.78 x 3.78''), 144 (5.67 x 5.67'')

Spezial-Manometer - RChaG63
RCha/RChaG
bayonet ring case stainless steel
American case type
without or with case filling
nominal size: 63 (2?")

Spezial-Manometer - RCha100-3 2,5bar
RCha/RChaG
bayonet ring case stainless steel
American case type
without or with case filling
nominal size: 100 (4"), 160 (6")

Spezial-Manometer RCaiCh160 10bar
RCaiCh
bayonet ring case stainless steel
caisson pressure gauge
without case filling
nominal size: 160 (6")

Spezial-Manometer - Konservendosen
RCh/RChG
bayonet ring case stainless steel
can puncturing gauge
without or with case filling
nominal size: 63 (2?")

Spezial-Manometer - RCh63-3 NPT Reinstgas
RCh/RChG
bayonet ring case stainless steel
ultrapure gas pressure gauges with ECD-quality
without or with case filling
nominal size: 63 (2?")

Spezial-Manometer RSCh63-3 VCR-F
RSCh
bayonet ring case stainless steel
safety category S3 according to DIN EN 837-1
ultrapure gas pressure gauges with ECD-quality
without case filling
nominal size: 63 (2?")

Spezial-Manometer RChE50-3 40bar
RChE
case stainless steel, snap-in window
with limit switch contact assembly I
monitoring of the filling level of gas cylinders
also for ultrapure gases with ECD-quality
without case filling
nominal size: 50 (2")

ARMATURENBAU MANOTHERM Schienenfahrzeug
Rg 60-1 Fz/RChg 80-1 Fz/RChg 100-1 Fz
crimped-on ring case galvanised steel/stainless steel
combi gauges for rail cars
rail car pressure gauges
according to DIN 38030:2009-02
without case filling
nominal size: 60 (2.36"), 80 (3"), 100 (4")
DetailsDS 1901
ARMATURENBAU MANOTHERM Schienenfahrzeug
RChg 125-1 Fz
crimped-on ring case stainless steel
combi gauges for rail cars
without case filling
nominal size: 125 (5")

Spezial-Manometer RChgOe100-3 M22 f. SF5 Gas
RChg 100-3 SF6/RChgOe 100-3 SF6/RChgN 100-3 SF6
crimped-on ring case stainless steel
with limit switch contact assembly M
SF6-gas density monitor
without or with case filling oil/nitrogen
nominal size: 100 (4")

Bourdon tube pressure gauges with electrical additional accessory
Rohrfeder Manometer mit elekt. Zusatzeinr.  RCh100-3 25bar
RCh/RChOe
bayonet ring case stainless steel
with limit switch contact assembly
without or with case filling oil
nominal size: 100 (4"), 160 (6")

Rohrfeder Manometer mit elekt. Zusatzeinr.  RSCh63-3 250bar I12 NPT
RSCh
bayonet ring case stainless steel
safety category S3 according to EN 837-1
with limit switch contact assembly M
without case filling
nominal size: 63 (2?")

Rohrfeder Manometer mit elekt. Zusatzeinr.  RSCh63-3 250bar
RSCh
bayonet ring case stainless steel
safety category S3 according to EN 837-1
with limit switch contact assembly I or E
without case filling
nominal size: 63 (2?")

Rohrfeder Manometer mit elekt. Zusatzeinr.  RSCh63-3 1-3bar R1 NPT
RSCh
bayonet ring case stainless steel
safety category S3 according to EN 837-1
with limit switch contact assembly R
without case filling
nominal size: 63 (2?")

Rohrfeder Manometer mit elekt. Zusatzeinr.  RSCh100-3 160bar l-12
RSCh/RSChOe
bayonet ring case stainless steel
safety category S3 according to EN 837-1
with limit switch contact assembly
without or with case filling oil
nominal size: 100 (4"), 160 (6")

Rohrfeder Manometer mit elekt. Zusatzeinr.  RCha63-Reed
RCha
stainless steel bayonet ring case
American case type
with limit switch contact assembly R
without case filling
nominal size: 63 (2?")

Rohrfeder Manometer mit elekt. Zusatzeinr.  RQS96-1 40bar M12
RQS
square case
front narrow rim black
with limit switch contact assembly
without case filling
nominal size: 96 (3.78 x 3.78''), 144 (5.67 x 5.67'')

Rohrfeder Manometer mit elekt. Zusatzeinr.  RSCh100-3 10bar
RSCh/RSChOe
bayonet ring case stainless steel
safety category S3 according to DIN EN 837-1
with integrated pressure transmitter
without or with case filling oil
nominal size: 100 (4"), 160 (6")

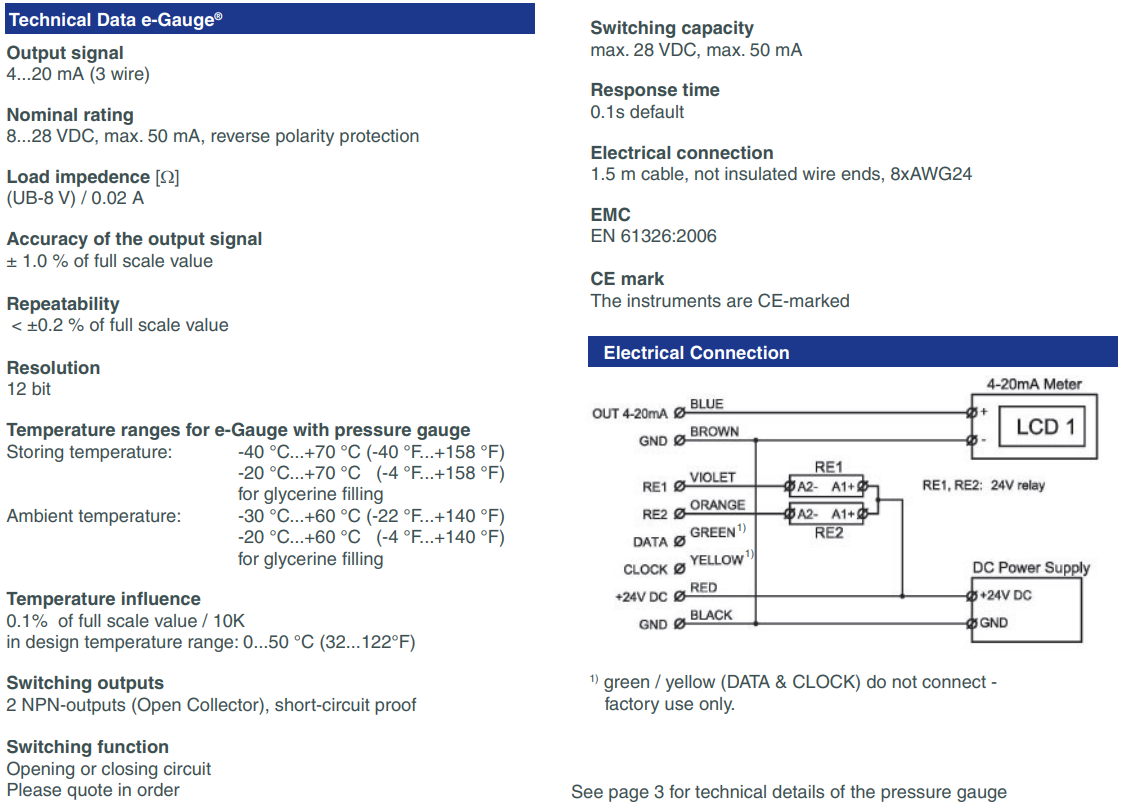

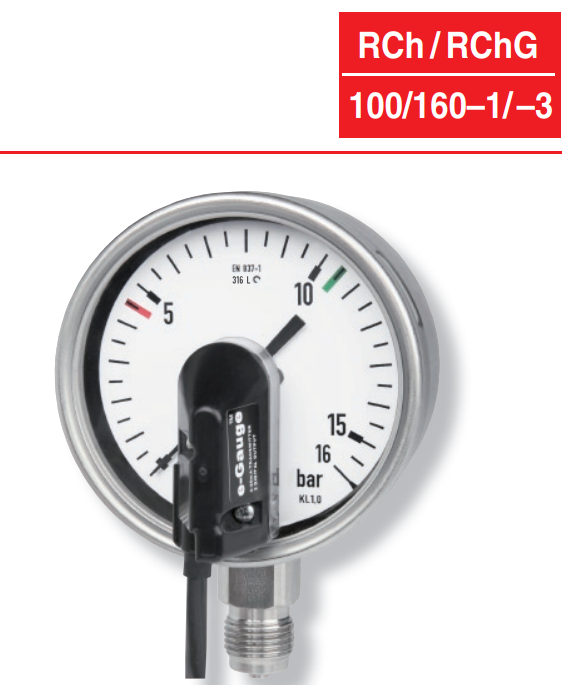

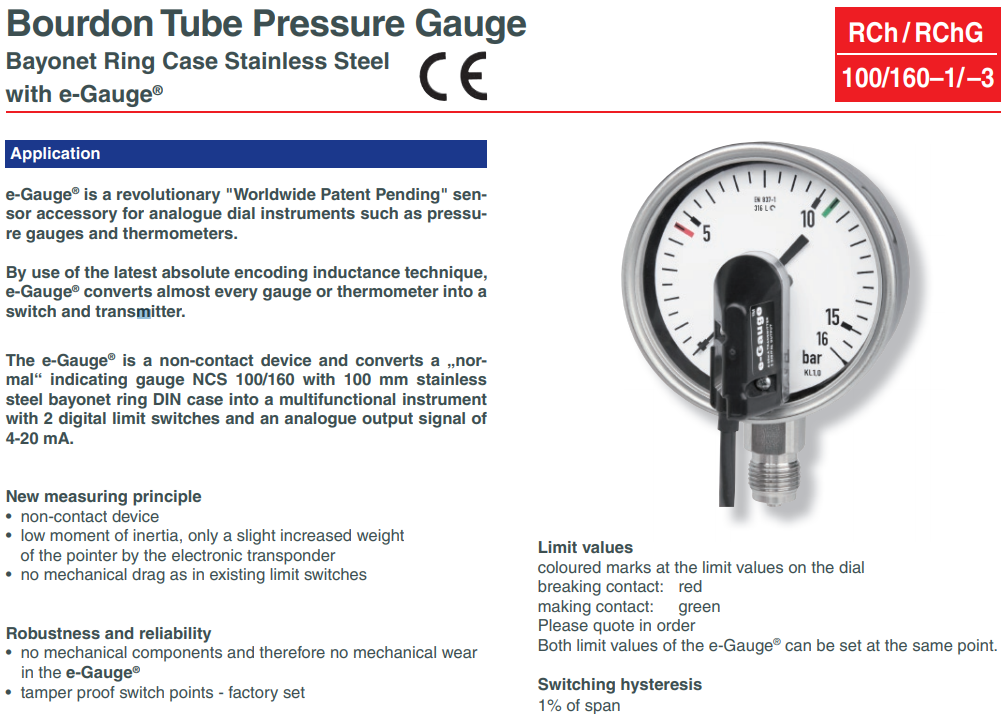

Standard-Manometer RCh100-3 mit e-Gauge
RCh/RChGRCh100-1/RCh100-3/RCh160-1/RCh160-3/RChG100-1/RChG100-3/RChG160-1/RChG160-3波登管壓力表
bayonet ring case stainless steel
with e-Gauge®
2 switching outputs NpN
output signal 4-20 mA
without or with case filling
nominal size: 100 (4"), 160 (6")

更多關于AB/MT/ARMANO壓力表型號、壓力傳感器價格、電子壓力開關技術資料、溫度計規格參數，歡迎來電咨詢AB中國總代理-蘇州知非機電設備有限公司0512-68733420/18962140620/13915513800
