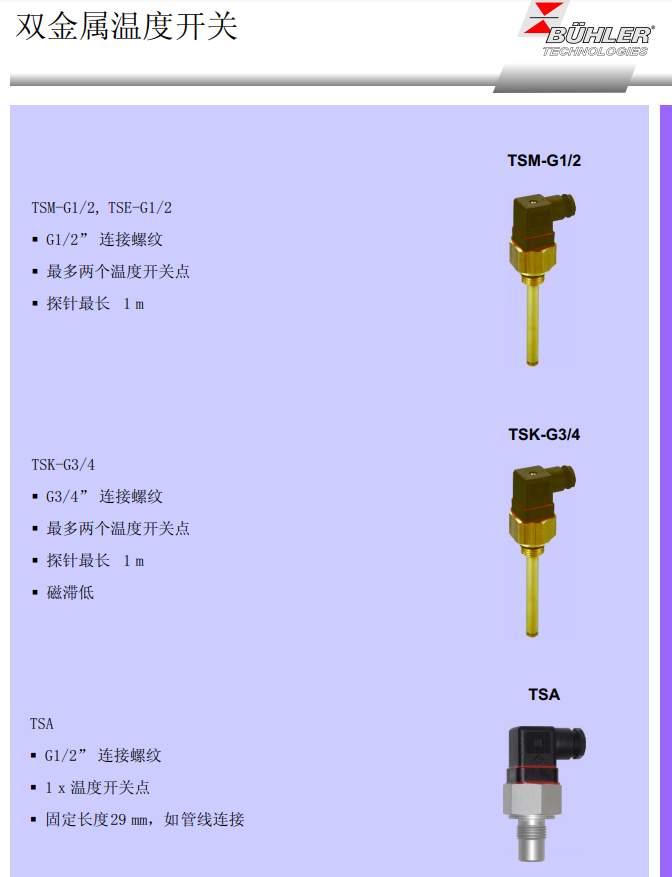

采用雙金屬技術的簡單溫度開關

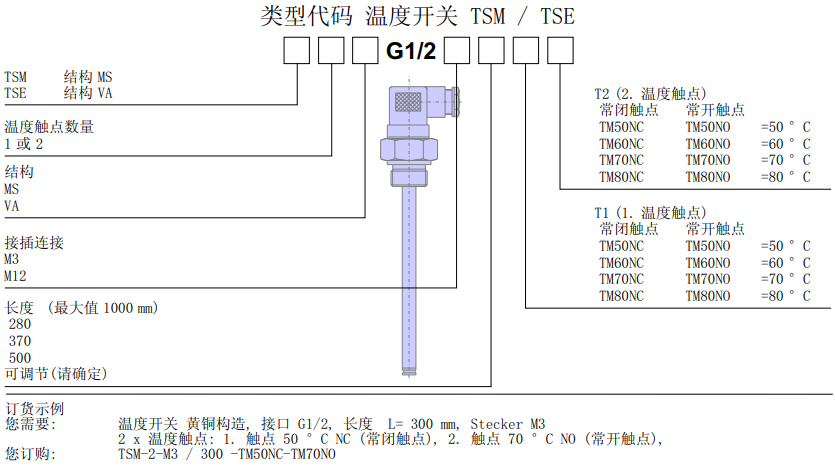

TSM-G1/2，TSE-G1/2雙金屬溫度開關

? G1/2“螺紋安裝
? 最多2個溫度開關點
? 傳感器測桿長度可達1米

? 各種插頭可選

訂貨示例
您需要: 溫度開關 黃銅構造, 接口 G1/2, 長度 L= 300 mm, Stecker M3
2 x 溫度觸點: 1. 觸點 50 °C NC (常閉觸點), 2. 觸點 70 °C NO (常開觸點),
您訂購: TSM-2-M3/300 -TM50NC-TM70NO
TSM-2-M3/280 -TM50NC-TM80NO
TSM-2-VA-M3/370 -TM60NC-TM70NO
TSM-2-M12/500 -TM70NC-TM60NO
TSM-2-VA-M12/520 -TM80NC-TM50NO
TSM-1-M3/280 -TM50NO
TSM-1-VA-M23/370 -TM60NC
TSM-1-M3/450 -TM70NO
TSM-1-VA-M12/500 -TM80NC
TSM-2-VA-M3/280 -TM50NC-TM80NO
TSM-2-M12/370 -TM60NC-TM70NO
TSM-2-VA-M3/500 -TM70NC-TM60NO
TSM-2-M12/520 -TM80NC-TM50NO
TSM-1-VA/280 -TM50NO
TSM-1-M3/370 -TM60NC
TSM-1-VA/450 -TM70NO
TSM-1-M12/500 -TM80NC
TSE-2-M3/280 -TM50NC-TM80NO
TSE-2-VA-M3/370 -TM60NC-TM70NO
TSE-2-M12/500 -TM70NC-TM60NO
TSE-2-VA-M12/520 -TM80NC-TM50NO
TSE-1-M3/280 -TM50NO
TSE-1-VA-M23/370 -TM60NC
TSE-1-M3/450 -TM70NO
TSE-1-VA-M12/500 -TM80NC
TSE-2-VA-M3/280 -TM50NC-TM80NO
TSE-2-M12/370 -TM60NC-TM70NO
TSE-2-VA-M3/500 -TM70NC-TM60NO
TSE-2-M12/520 -TM80NC-TM50NO
TSE-1-VA/280 -TM50NO
TSE-1-M3/370 -TM60NC
TSE-1-VA/450 -TM70NO
TSE-1-M12/500 -TM80NC

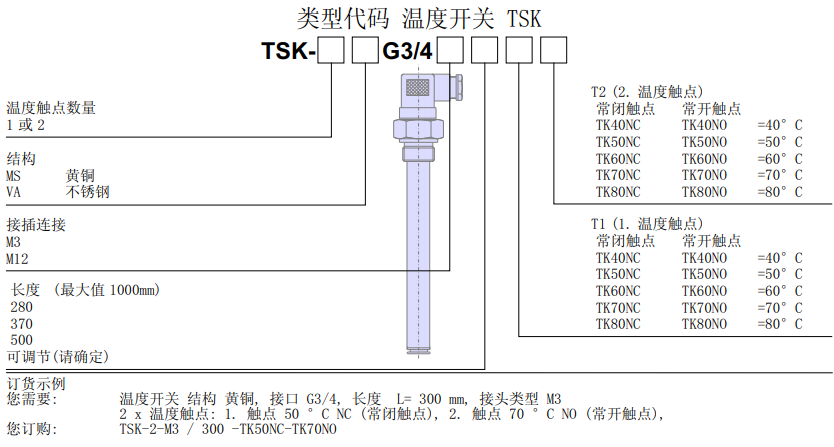

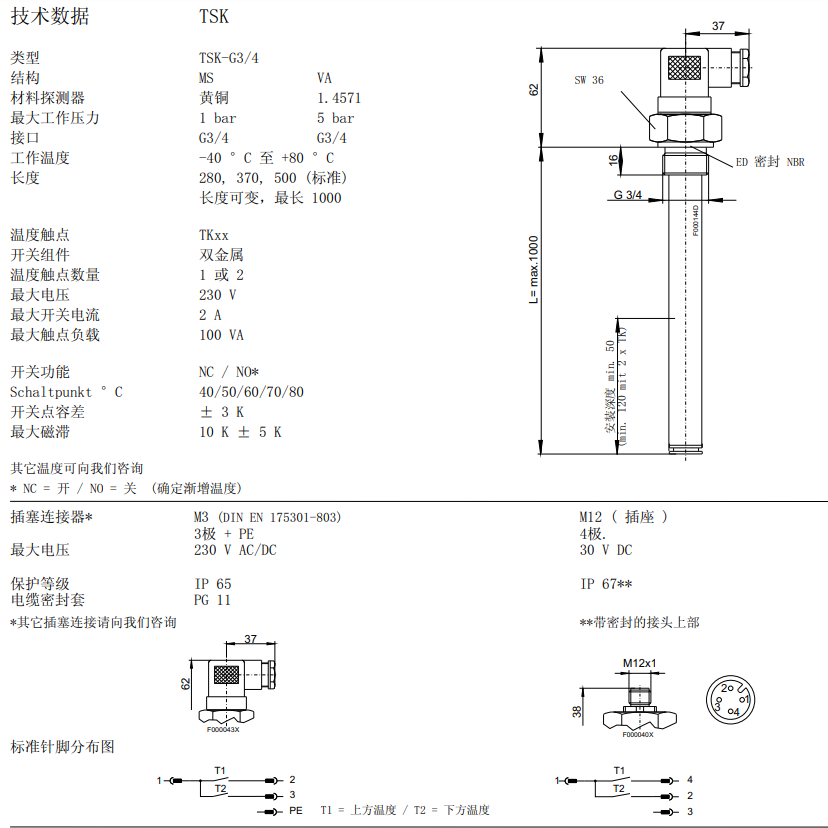

TSK G3/4
? G3/4“ 螺紋安裝
? 最多2個溫度開關點
? 傳感器測桿長度可達1米
? 低遲滯
? 各種插頭可選
訂貨示例
您需要: 溫度開關 結構 黃銅, 接口 G3/4, 長度 L= 300 mm, 接頭類型 M3
2 x 溫度觸點: 1. 觸點 50 °C NC (常閉觸點), 2. 觸點 70 °C NO (常開觸點),
您訂購: TSK-2-M3 / 300 -TK50NC-TK70NO

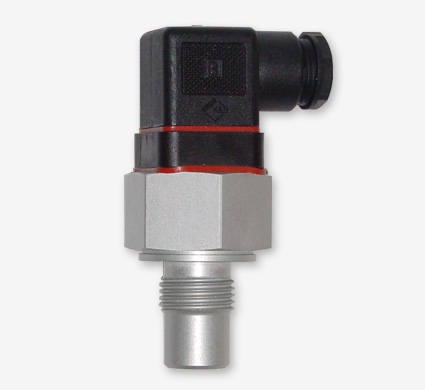

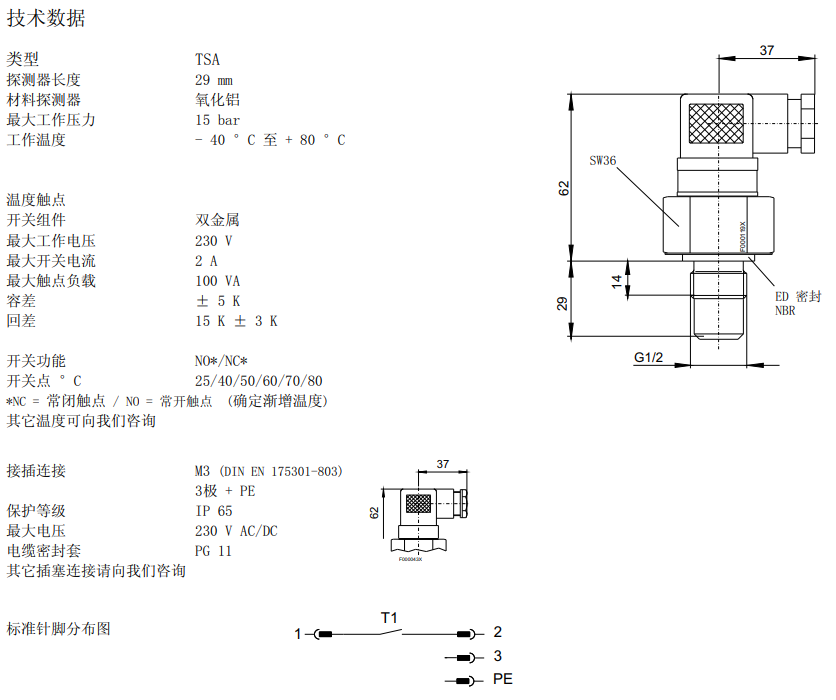

TSA
? G1/2“ 螺紋安裝
? 1個溫度開關點
? 固定測桿長度29mm，管道安裝
? 各種插頭可選
訂貨提示

開關功能 NO (常開觸點) . NC (常閉觸點)

TSK-2-M3/280 -TK40NC-TK80NO
TSK-2-M3/280 -TK50NC-TK80NO
TSK-2-VA-M3/370 -TK60NC-TK70NO
TSK-2-M12/500 -TK70NC-TK60NO
TSK-2-VA-M12/520 -TK80NC-TK50NO
TSK-1-M3/280 -TK450NO
TSK-1-M3/280 -TK50NO
TSK-1-VA-M23/370 -TK60NC
TSK-1-M3/450 -TK70NO
TSK-1-VA-M12/500 -TK80NC
TSK-2-VA-M3/280 -TK40NC-TK80NO
TSK-2-VA-M3/280 -TK50NC-TK80NO
TSK-2-M12/370 -TK60NC-TK70NO
TSK-2-VA-M3/500 -TK70NC-TK60NO
TSK-2-M12/520 -TK80NC-TK50NO
TSK-1-VA/280 -TK40NO
TSK-1-VA/280 -TK50NO
TSK-1-M3/370 -TK60NC
TSK-1-VA/450 -TK70NO
TSK-1-M12/500 -TK80NC

溫度 類型 物件編號 類型 物件編號
25 °C TSA-25-M3 11 39 699 T?A-25-M3 11 42 899
40 °C TSA-40-M3 11 39 599 T?A-40-M3 11 43 299
50 °C TSA-50-M3 11 38 599 T?A-50-M3 11 42 199
60 °C TSA-60-M3 11 38 699 T?A-60-M3 11 43 399
70 °C TSA-70M3 11 38 799 T?A-70-M3 11 40 299
80 °C TSA-80-M3 11 39 299 T?A-80-M3 11 40 899
訂貨示例:
您需要: 當 50 °C ，溫度觸點用作 NO(常開觸點), 接頭類型 M3
您訂購: 物件編號 1138599 溫度開關 TSA-50-M3

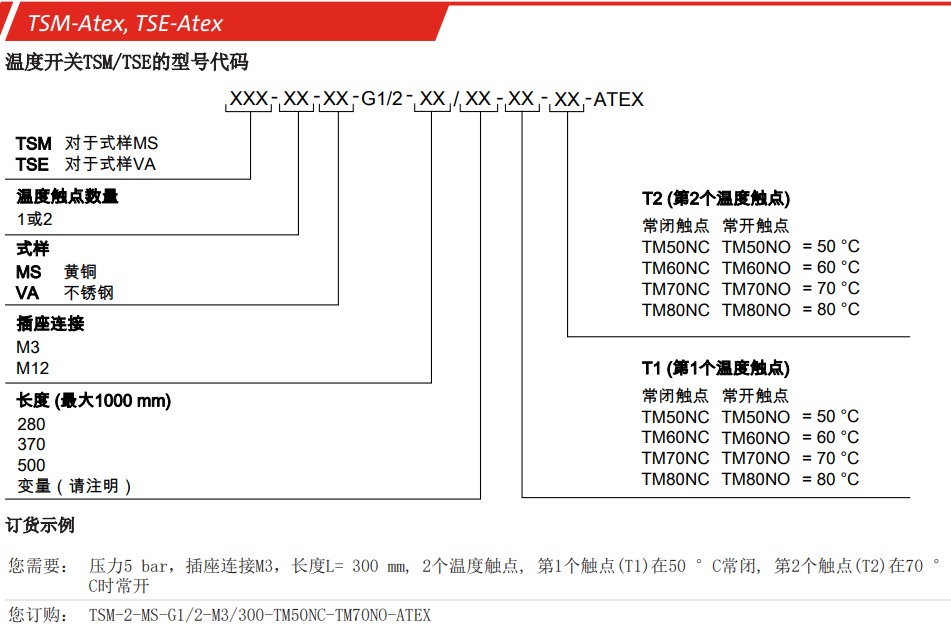

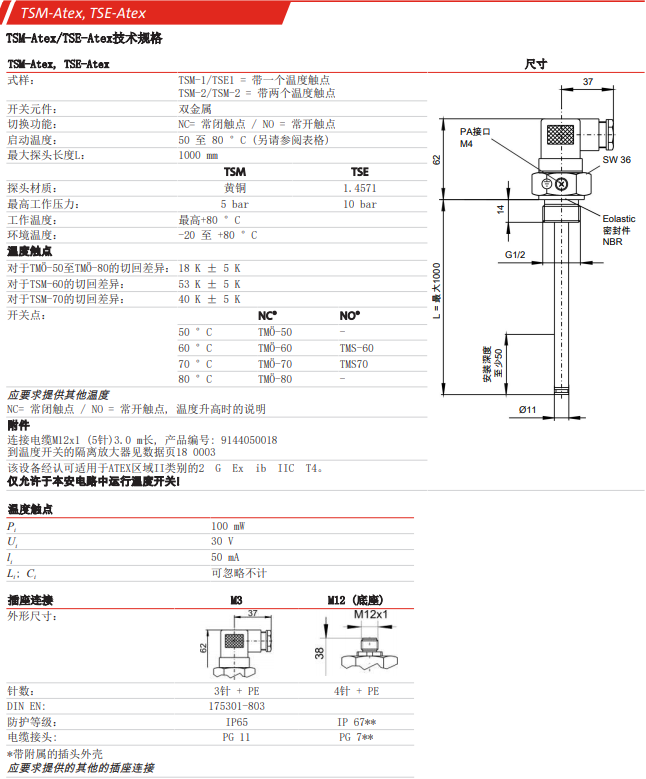

防爆溫度開關系列TSM-Atex / TSE-Atex
? 符合EN 60079-11的本安型ATEX應用，ZONE 1 (2G)
? 簡單，堅固的結構
? 內部電子部件可輕松拆卸
? 可選DIN插頭或M12插頭基座
? DIN連接器電纜出線方向可以90°步進調整

? 彈性密封圈

訂貨示例
您需要： 壓力5 bar，插座連接M3，長度L= 300 mm, 2個溫度觸點, 第1個觸點(T1)在50 °C常閉, 第2個觸點(T2)在70 °
C時常開
您訂購： TSM-2-MS-G1/2-M3/300-TM50NC-TM70NO-ATEX
TSM-2-MS-G1/2-M3/280-TM50NC-TM80NO-ATEX
TSM-2-MS-G1/2-M3/300-TM60NO-TM70NC-ATEX
TSM-2-MS-G1/2-M3/370-TM70NC-TM60NO-ATEX
TSM-2-MS-G1/2-M3/450-TM80NO-TM50NC-ATEX
TSM-2-MS-G1/2-M3/500-TM50NC-TM60NO-ATEX
TSM-2-MS-G1/2-M3/520-TM60NO-TM50NC-ATEX
TSM-2-VA-G1/2-M3/280-TM50NC-TM80NO-ATEX
TSM-2-VA-G1/2-M3/300-TM60NO-TM70NC-ATEX
TSM-2-VA-G1/2-M3/370-TM70NC-TM60NO-ATEX
TSM-2-VA-G1/2-M3/450-TM80NO-TM50NC-ATEX
TSM-2-VA-G1/2-M3/500-TM50NC-TM60NO-ATEX
TSM-2-VA-G1/2-M3/520-TM60NO-TM50NC-ATEX
TSM-2-MS-G1/2-M12/280-TM50NC-TM80NO-ATEX
TSM-2-MS-G1/2-M12/300-TM60NO-TM70NC-ATEX
TSM-2-MS-G1/2-M12/370-TM70NC-TM60NO-ATEX
TSM-2-MS-G1/2-M12/450-TM80NO-TM50NC-ATEX
TSM-2-MS-G1/2-M12/500-TM50NC-TM60NO-ATEX
TSM-2-MS-G1/2-M12/520-TM60NO-TM50NC-ATEX
TSM-2-VA-G1/2-M12/280-TM50NC-TM80NO-ATEX
TSM-2-VA-G1/2-M12/300-TM60NO-TM70NC-ATEX
TSM-2-VA-G1/2-M12/370-TM70NC-TM60NO-ATEX
TSM-2-VA-G1/2-M12/450-TM80NO-TM50NC-ATEX
TSM-2-VA-G1/2-M12/500-TM50NC-TM60NO-ATEX
TSM-2-VA-G1/2-M12/520-TM60NO-TM50NC-ATEX
TSM-1-MS-G1/2-M3/280-TM50NC-ATEX
TSM-1-MS-G1/2-M3/300-TM70NC-ATEX
TSM-1-MS-G1/2-M3/370-TM60NO-ATEX
TSM-1-MS-G1/2-M3/450-TM80NO-ATEX
TSM-1-MS-G1/2-M3/500-TM60NO-ATEX
TSM-1-MS-G1/2-M3/520-TM50NC-ATEX
TSM-1-VA-G1/2-M3/280-TM80NO-ATEX
TSM-1-VA-G1/2-M3/300-TM70NC-ATEX
TSM-1-VA-G1/2-M3/370-TM60NO-ATEX
TSM-1-VA-G1/2-M3/450-TM50NC-ATEX
TSM-1-VA-G1/2-M3/500-TM70NO-ATEX
TSM-1-VA-G1/2-M3/520-TM80NC-ATEX
TSM-1-MS-G1/2-M12/280-TM50NC-ATEX
TSM-1-MS-G1/2-M12/300-TM70NC-ATEX
TSM-1-MS-G1/2-M12/370-TM60NO-ATEX
TSM-1-MS-G1/2-M12/450-TM80NO-ATEX
TSM-1-MS-G1/2-M12/500-TM60NO-ATEX
TSM-1-MS-G1/2-M12/520-TM50NC-ATEX
TSM-1-VA-G1/2-M12/280-TM80NO-ATEX
TSM-1-VA-G1/2-M12/300-TM70NC-ATEX
TSM-1-VA-G1/2-M12/370-TM60NO-ATEX
TSM-1-VA-G1/2-M12/450-TM50NC-ATEX
TSM-1-VA-G1/2-M12/500-TM70NO-ATEX
TSM-1-VA-G1/2-M12/520-TM80NC-ATEX
TSE-2-MS-G1/2-M3/280-TM50NC-TM80NO-ATEX
TSE-2-MS-G1/2-M3/300-TM60NO-TM70NC-ATEX
TSE-2-MS-G1/2-M3/370-TM70NC-TM60NO-ATEX
TSE-2-MS-G1/2-M3/450-TM80NO-TM50NC-ATEX
TSE-2-MS-G1/2-M3/500-TM50NC-TM60NO-ATEX
TSE-2-MS-G1/2-M3/520-TM60NO-TM50NC-ATEX
TSE-2-VA-G1/2-M3/280-TM50NC-TM80NO-ATEX
TSE-2-VA-G1/2-M3/300-TM60NO-TM70NC-ATEX
TSE-2-VA-G1/2-M3/370-TM70NC-TM60NO-ATEX
TSE-2-VA-G1/2-M3/450-TM80NO-TM50NC-ATEX
TSE-2-VA-G1/2-M3/500-TM50NC-TM60NO-ATEX
TSE-2-VA-G1/2-M3/520-TM60NO-TM50NC-ATEX
TSE-2-MS-G1/2-M12/280-TM50NC-TM80NO-ATEX
TSE-2-MS-G1/2-M12/300-TM60NO-TM70NC-ATEX
TSE-2-MS-G1/2-M12/370-TM70NC-TM60NO-ATEX
TSE-2-MS-G1/2-M12/450-TM80NO-TM50NC-ATEX
TSE-2-MS-G1/2-M12/500-TM50NC-TM60NO-ATEX
TSE-2-MS-G1/2-M12/520-TM60NO-TM50NC-ATEX
TSE-2-VA-G1/2-M12/280-TM50NC-TM80NO-ATEX
TSE-2-VA-G1/2-M12/300-TM60NO-TM70NC-ATEX
TSE-2-VA-G1/2-M12/370-TM70NC-TM60NO-ATEX
TSE-2-VA-G1/2-M12/450-TM80NO-TM50NC-ATEX
TSE-2-VA-G1/2-M12/500-TM50NC-TM60NO-ATEX
TSE-2-VA-G1/2-M12/520-TM60NO-TM50NC-ATEX

TSE-1-MS-G1/2-M3/280-TM50NC-ATEX
TSE-1-MS-G1/2-M3/300-TM70NC-ATEX
TSE-1-MS-G1/2-M3/370-TM60NO-ATEX
TSE-1-MS-G1/2-M3/450-TM80NO-ATEX
TSE-1-MS-G1/2-M3/500-TM60NO-ATEX
TSE-1-MS-G1/2-M3/520-TM50NC-ATEX
TSE-1-VA-G1/2-M3/280-TM80NO-ATEX
TSE-1-VA-G1/2-M3/300-TM70NC-ATEX
TSE-1-VA-G1/2-M3/370-TM60NO-ATEX
TSE-1-VA-G1/2-M3/450-TM50NC-ATEX
TSE-1-VA-G1/2-M3/500-TM70NO-ATEX
TSE-1-VA-G1/2-M3/520-TM80NC-ATEX
TSE-1-MS-G1/2-M12/280-TM50NC-ATEX
TSE-1-MS-G1/2-M12/300-TM70NC-ATEX
TSE-1-MS-G1/2-M12/370-TM60NO-ATEX
TSE-1-MS-G1/2-M12/450-TM80NO-ATEX
TSE-1-MS-G1/2-M12/500-TM60NO-ATEX
TSE-1-MS-G1/2-M12/520-TM50NC-ATEX
TSE-1-VA-G1/2-M12/280-TM80NO-ATEX
TSE-1-VA-G1/2-M12/300-TM70NC-ATEX
TSE-1-VA-G1/2-M12/370-TM60NO-ATEX
TSE-1-VA-G1/2-M12/450-TM50NC-ATEX
TSE-1-VA-G1/2-M12/500-TM70NO-ATEX
TSE-1-VA-G1/2-M12/520-TM80NC-ATEX

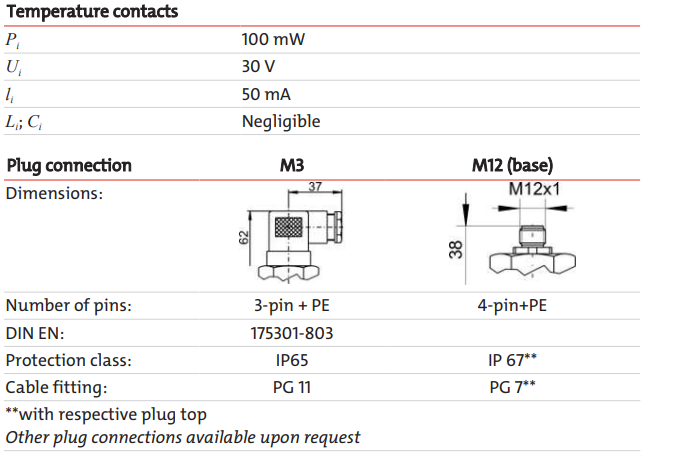

溫度開關經認證可用于ATEX 1區，并符合EN 60079-11的本質安全要求

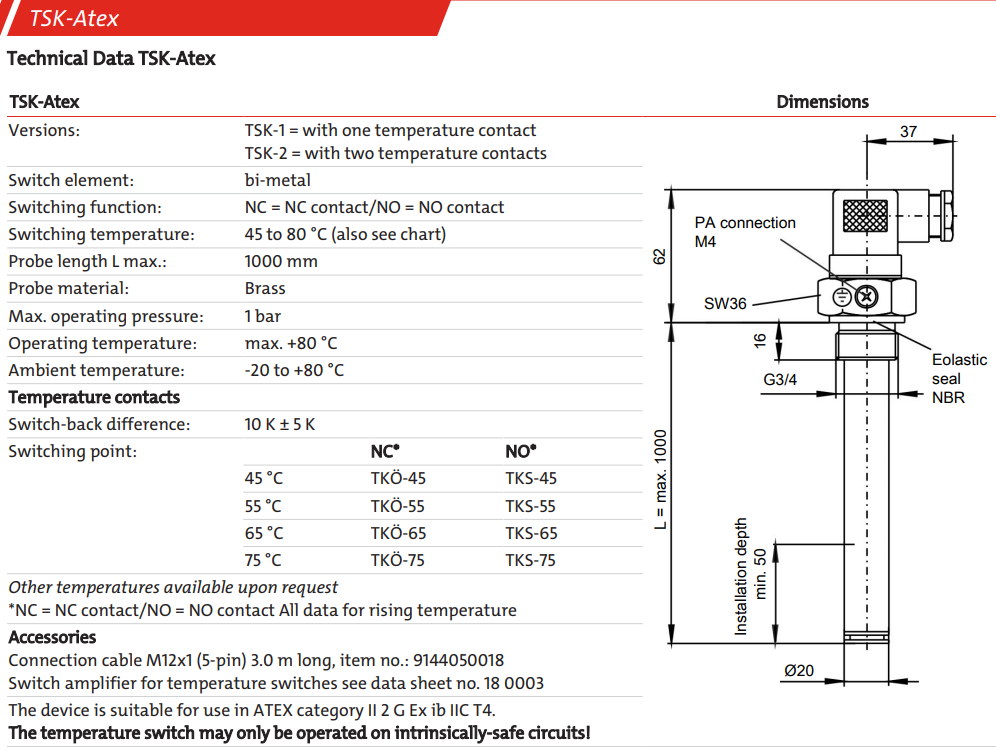

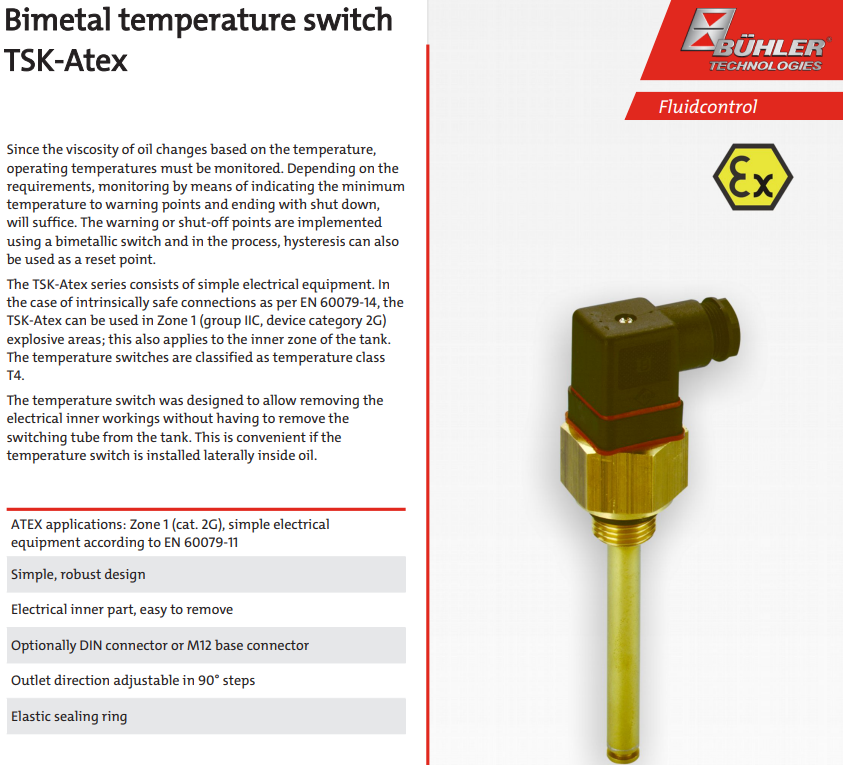

防爆溫度開關TSK-Atex
? 符合EN 60079-11的本安型ATEX應用ZONE 1(2G)
? 簡單，堅固的結構
? 內部電子部件可輕松拆卸
? 可選DIN插頭或M12插頭基座
? DIN連接器電纜出線方向可以90°步進調整

? 彈性密封圈

訂貨示例：
TSK-2-MS-G3/4-M3/280-TK40NO-TK60NC-ATEX
TSK-2-MS-G3/4-M12/300-TK50NC-TK70NO-ATEX
TSK-2-MS-G3/4-M3/370-TK60NO-TK80NC-ATEX
TSK-2-MS-G3/4-M12/500-TK70NC-TK50NO-ATEX
TSK-2-MS-G3/4-M3/520-TK80NO-TK40NC-ATEX
TSK-1-MS-G3/4-M3/280-TK40NO-ATEX
TSK-1-MS-G3/4-M12/300-TK50NCATEX
TSK-1-MS-G3/4-M3/370-TK60NO-ATEX
TSK-1-MS-G3/4-M12/500-TK70NC-ATEX
TSK-1-MS-G3/4-M3/520-TK80NO-ATEX

電動內部部件易于拆卸 有彈性的密封環

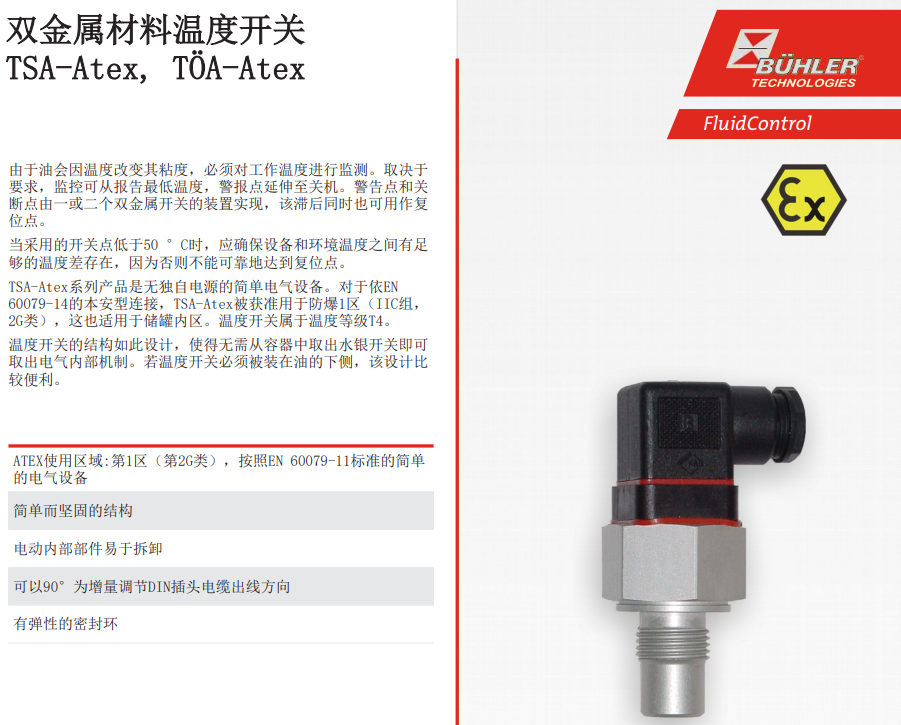

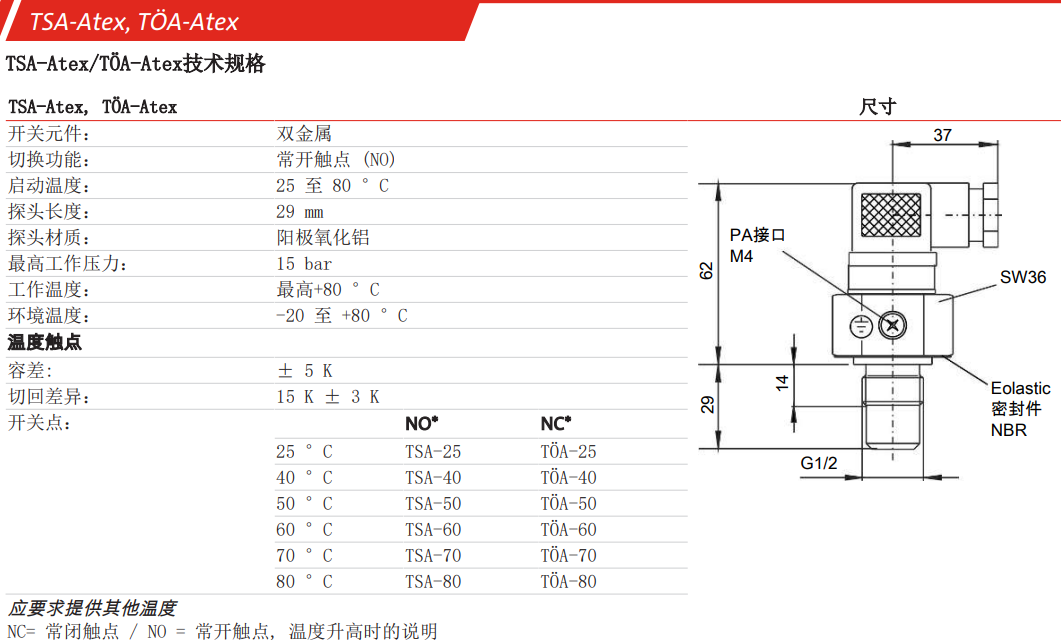

防爆溫度開關TSA-Atex，T?A-Atex ATEX認證溫度開關

ATEX使用區域:第1區（第2G類），按照EN 60079-11標準的簡單 的電氣設備

簡單而堅固的結構
電動內部部件易于拆卸
可以90°為增量調節DIN插頭電纜出線方向

有彈性的密封環

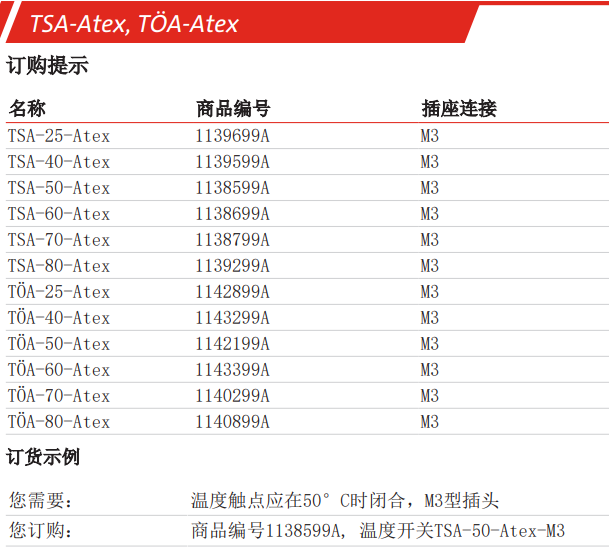

訂購提示
名稱 商品編號 插座連接
TSA-25-Atex 1139699A M3
TSA-40-Atex 1139599A M3
TSA-50-Atex 1138599A M3
TSA-60-Atex 1138699A M3
TSA-70-Atex 1138799A M3
TSA-80-Atex 1139299A M3
T?A-25-Atex 1142899A M3
T?A-40-Atex 1143299A M3
T?A-50-Atex 1142199A M3
T?A-60-Atex 1143399A M3
T?A-70-Atex 1140299A M3
T?A-80-Atex 1140899A M3
訂貨示例
您需要： 溫度觸點應在50°C時閉合，M3型插頭
您訂購： 商品編號1138599A, 溫度開關TSA-50-Atex-M3

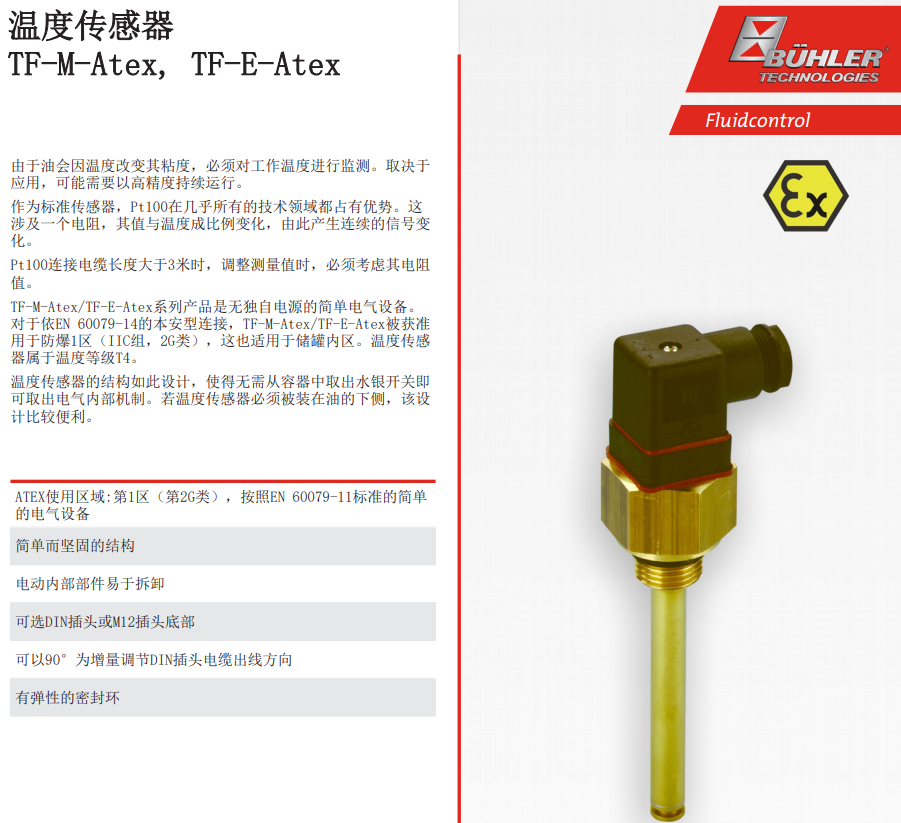

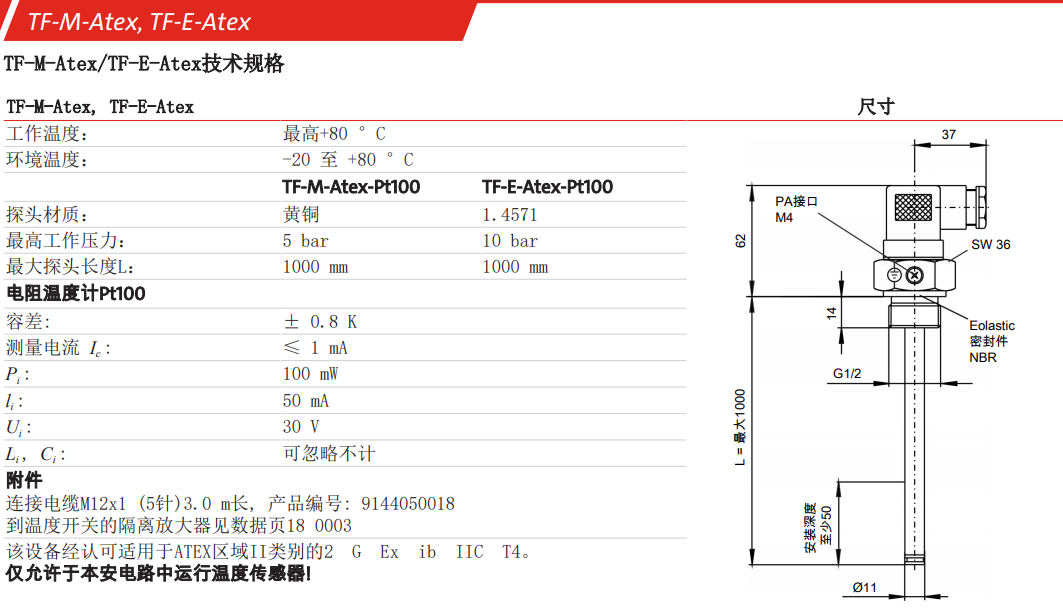

防爆溫度開關系列TF-M-Atex / TF-E-Atex
ATEX使用區域:第1區（第2G類），按照EN 60079-11標準的簡單 的電氣設備

簡單而堅固的結構
電動內部部件易于拆卸
可選DIN插頭或M12插頭底部
可以90°為增量調節DIN插頭電纜出線方向
有彈性的密封環

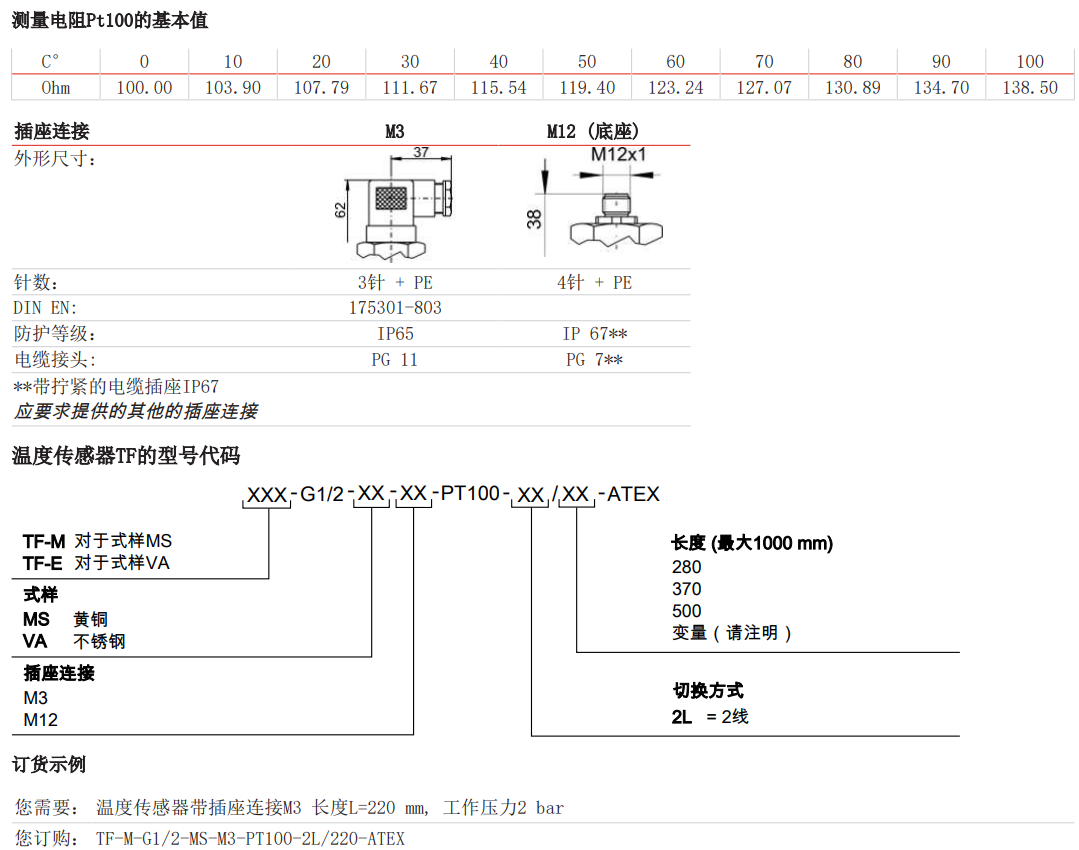

TF-M-G1/2-MS-M3-PT100-2L/280-ATEX
TF-M-G1/2-MS-M3-PT100-2L/370-ATEX
TF-M-G1/2-MS-M3-PT100-2L/500-ATEX
TF-M-G1/2-MS-M12-PT100-2L/220-ATEX
TF-M-G1/2-MS-M12-PT100-2L/280-ATEX
TF-M-G1/2-MS-M12-PT100-2L/370-ATEX
TF-M-G1/2-MS-M12-PT100-2L/500-ATEX
TF-E-G1/2-VA-M3-PT100-2L/220-ATEX
TF-E-G1/2-VA-M3-PT100-2L/280-ATEX
TF-E-G1/2-VA-M3-PT100-2L/370-ATEX
TF-E-G1/2-VA-M3-PT100-2L/500-ATEX
TF-E-G1/2-VA-M12-PT100-2L/220-ATEX
TF-E-G1/2-VA-M12-PT100-2L/280-ATEX
TF-E-G1/2-VA-M12-PT100-2L/370-ATEX
TF-E-G1/2-VA-M12-PT100-2L/500-ATEX
