海德泰尼科hydro Technik測壓軟管S100原裝進口

測壓軟管技術(shù)樣本下載

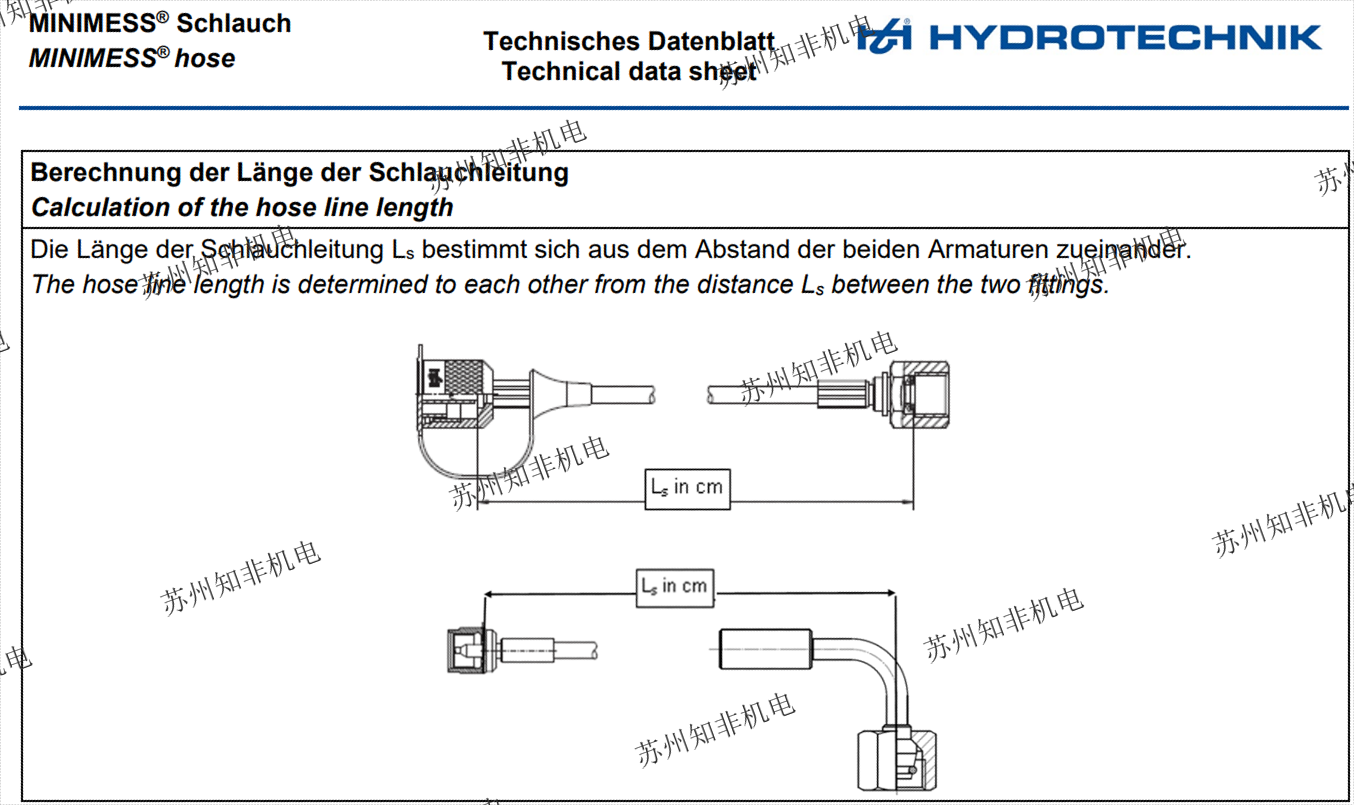

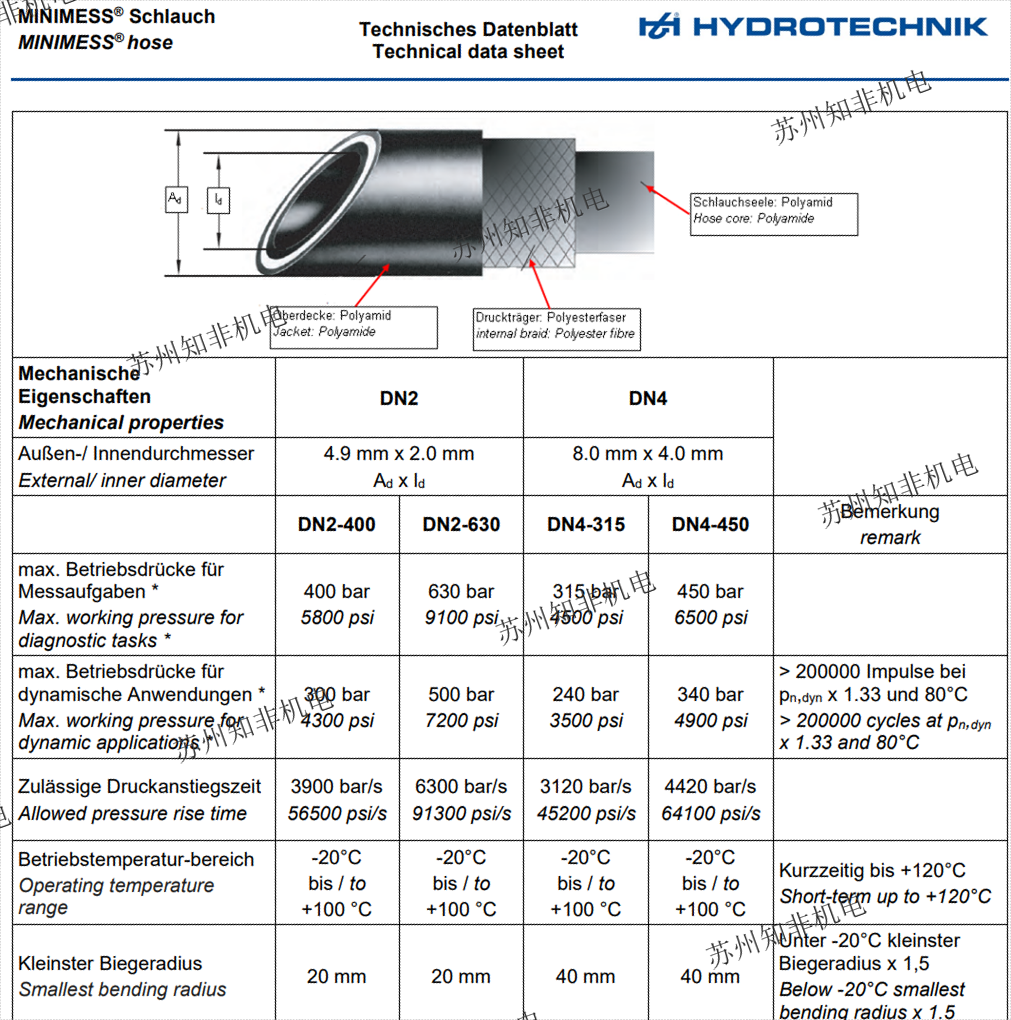

測壓軟管外型圖

測壓軟管訂貨號：軟管連接測壓接頭那頭的接頭為：M16×2.0,連接壓力表那頭的接頭為：M16×2.0

L(mm) 最大工作壓力 測壓軟管訂貨號 最大工作壓力 測壓軟管訂貨號

200 40MPa S100-AC-AC-0020 63MPa S110-AC-AC-0020

300 S100-AC-AC-0030 S110-AC-AC-0030

400 S100-AC-AC-0040 S110-AC-AC-0040

500 S100-AC-AC-0050 S110-AC-AC-0050

630 S100-AC-AC-0063 S110-AC-AC-0063

800 S100-AC-AC-0080 S110-AC-AC-0080

1000 S100-AC-AC-0100 S110-AC-AC-0100

1250 S100-AC-AC-0125 S110-AC-AC-0125

1500 S100-AC-AC-0150 S110-AC-AC-0150

2000 S100-AC-AC-0200 S110-AC-AC-0200

2500 S100-AC-AC-0250 S110-AC-AC-0250

3200 S100-AC-AC-0320 S110-AC-AC-0320

4000 S100-AC-AC-0400 S110-AC-AC-0400

5000 S100-AC-AC-0500 S110-AC-AC-0500

測壓軟管訂貨號：軟管連接測壓接頭那頭的接頭為：M16×2.0,連接壓力表那頭的接頭為：M16×2.0，90°

200 40MPa S100-AC-AL-0020 63MPa S110-AC-AL-0020

300 S100-AC-AL-0030 S110-AC-AL-0030

400 S100-AC-AL-0040 S110-AC-AL-0040

500 S100-AC-AL-0050 S110-AC-AL-0050

630 S100-AC-AL-0063 S110-AC-AL-0063

800 S100-AC-AL-0080 S110-AC-AL-0080

1000 S100-AC-AL-0100 S110-AC-AL-0100

1250 S100-AC-AL-0125 S110-AC-AL-0125

1500 S100-AC-AL-0150 S110-AC-AL-0150

2000 S100-AC-AL-0200 S110-AC-AL-0200

2500 S100-AC-AL-0250 S110-AC-AL-0250

3200 S100-AC-AL-0320 S110-AC-AL-0320

4000 S100-AC-AL-0400 S110-AC-AL-0400

5000 S100-AC-AL-0500 S110-AC-AL-0500

測壓軟管訂貨號：軟管連接測壓接頭那頭的接頭為：M16×2.0,連接壓力表那頭的接頭為：G1/4

400 40MPa S100-AC-FA-0040 63MPa S110-AC-FA-0040

500 S100-AC-FA-0050 S110-AC-FA-0050

630 S100-AC-FA-0063 S110-AC-FA-0063

800 S100-AC-FA-0080 S110-AC-FA-0080

1000 S100-AC-FA-0100 S110-AC-FA-0100

1250 S100-AC-FA-0125 S110-AC-FA-0125

1500 S100-AC-FA-0150 S110-AC-FA-0150

2000 S100-AC-FA-0200 S110-AC-FA-0200

2500 S100-AC-FA-0250 S110-AC-FA-0250

3200 S100-AC-FA-0320 S110-AC-FA-0320

4000 S100-AC-FA-0400 S110-AC-FA-0400

測壓軟管訂貨號：軟管連接測壓接頭那頭的接頭為：M16×2.0,連接壓力表那頭的接頭為：G1/2

400 40MPa S100-AC-FB-0040 63MPa S110-AC-FB-0040

500 S100-AC-FB-0050 S110-AC-FB-0050

630 S100-AC-FB-0063 S110-AC-FB-0063

800 S100-AC-FB-0080 S110-AC-FB-0080

1000 S100-AC-FB-0100 S110-AC-FB-0100

1250 S100-AC-FB-0125 S110-AC-FB-0125

1500 S100-AC-FB-0150 S110-AC-FB-0150

2000 S100-AC-FB-0200 S110-AC-FB-0200

2500 S100-AC-FB-0250 S110-AC-FB-0250

3200 S100-AC-FB-0320 S110-AC-FB-0320

4000 S100-AC-FB-0400 S110-AC-FB-0400

測壓軟管訂貨號：軟管連接測壓接頭那頭的接頭為：M16×2.0,連接壓力表那頭的接頭為：G1/4，90°

400 40MPa S100-AC-FC-0040 63MPa S110-AC-FC-0040

500 S100-AC-FC-0050 S110-AC-FC-0050

630 S100-AC-FC-0063 S110-AC-FC-0063

800 S100-AC-FC-0080 S110-AC-FC-0080

1000 S100-AC-FC-0100 S110-AC-FC-0100

1250 S100-AC-FC-0125 S110-AC-FC-0125

1500 S100-AC-FC-0150 S110-AC-FC-0150

2000 S100-AC-FC-0200 S110-AC-FC-0200

2500 S100-AC-FC-0250 S110-AC-FC-0250

3200 S100-AC-FC-0320 S110-AC-FC-0320

4000 S100-AC-FC-0400 S110-AC-FC-0400

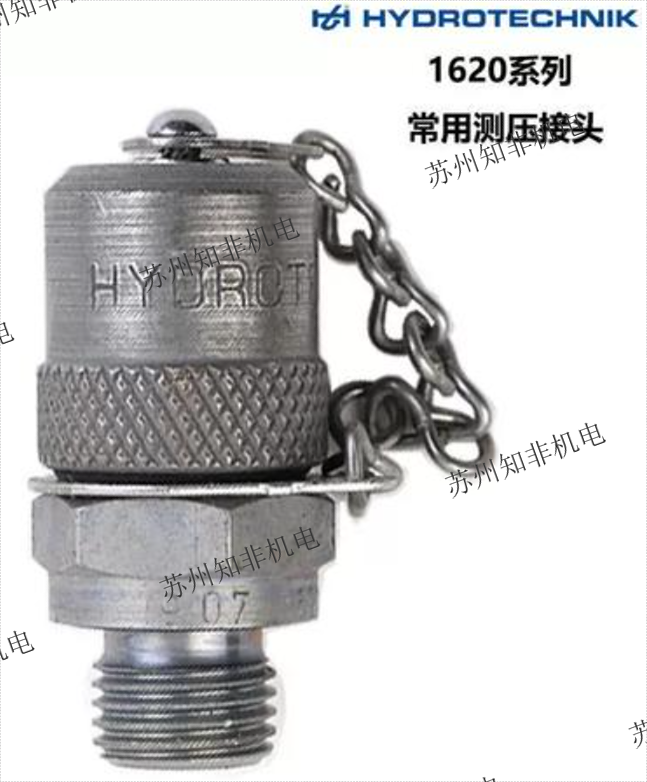

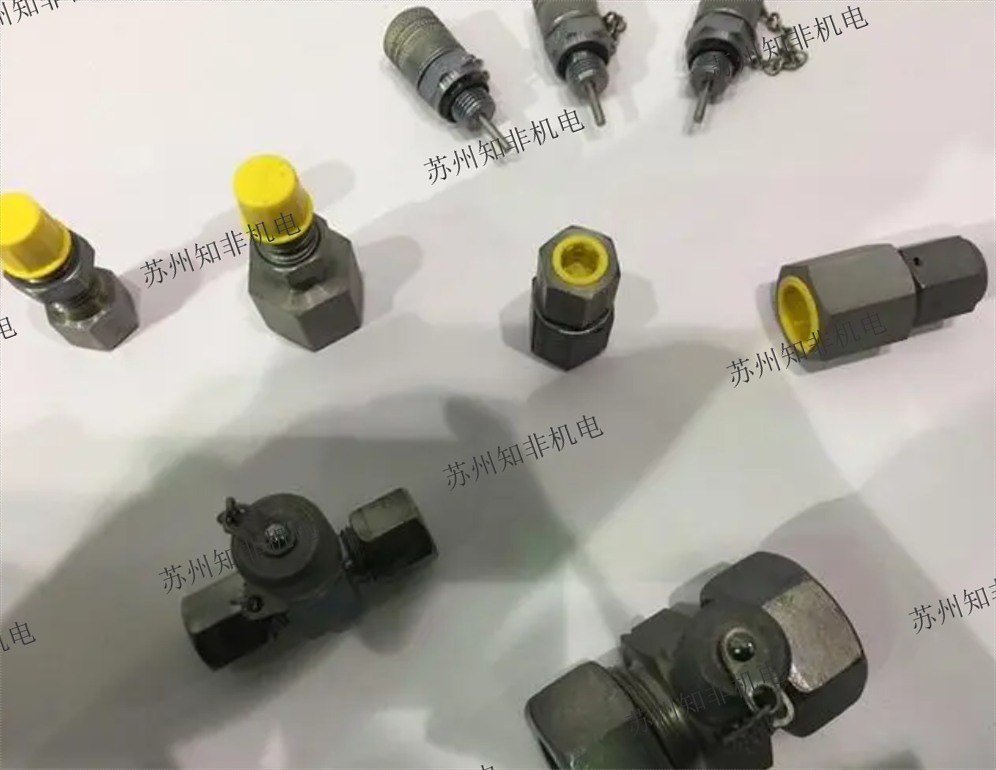

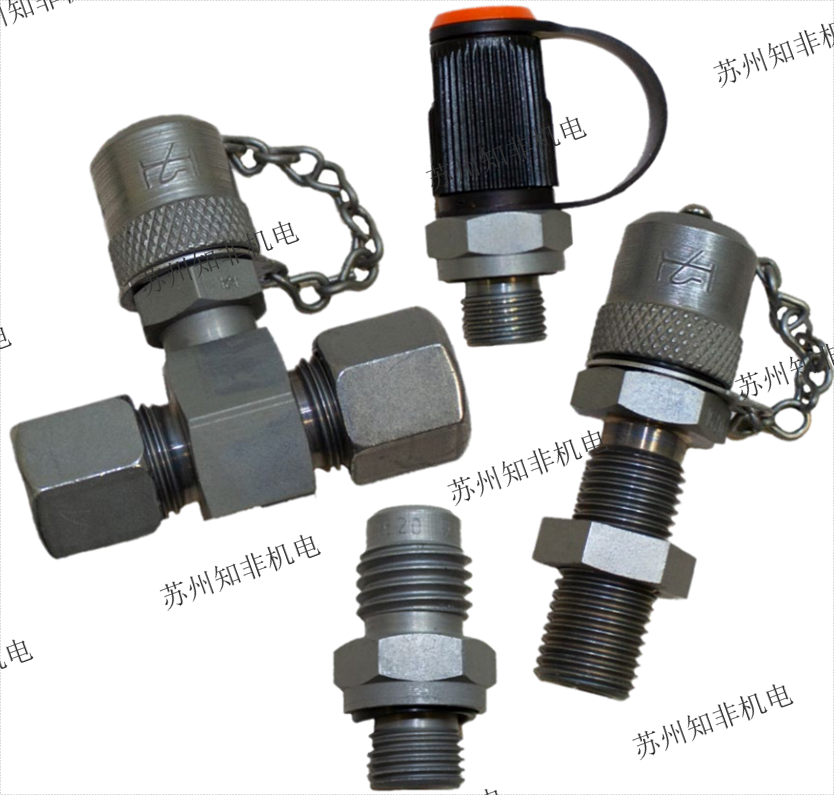

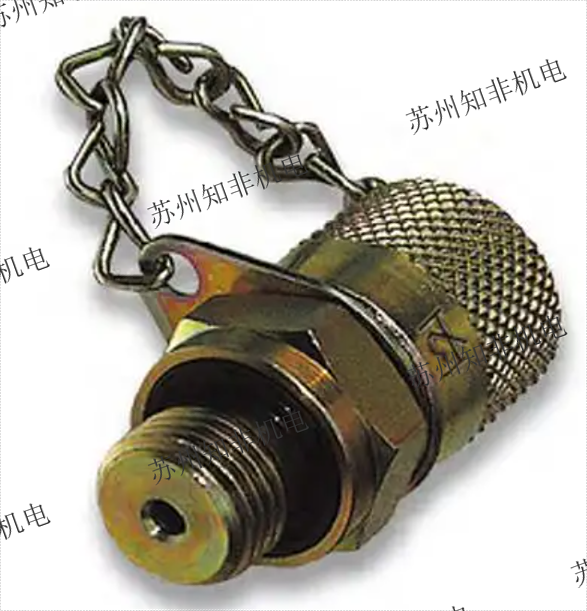

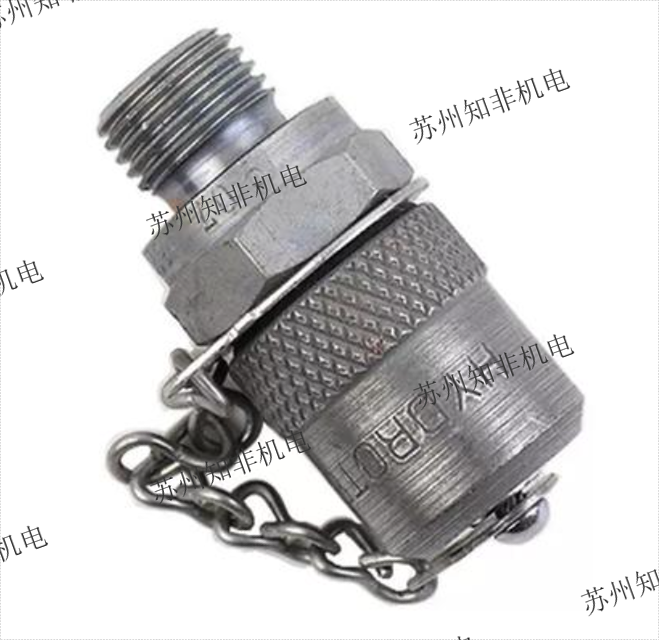

MINIMESS?

 1620

ISO 228-G 1/4 630 38 19 19 2103-05-11.00N

ISO 228-G 1/2 630 42.5 27 19 2103-05-12.00N

1/4 NPT 630 – 19 19 2103-05-23.00N

MINIMESS?

 1615

ISO 228-G 1/4 630 38 19 19 2102-05-11.00N

ISO 228-G 1/2 630 42.5 27 19 2102-05-12.00N

MINIMESS?

 1215

ISO 228-G 1/4 630 29.5 19 19 2101-05-11.00N

ISO 228-G 1/2 630 42 27 19 2101-05-12.00N

1/4 NPT 630 – 22 24 2101-05-23.00N

MINIMESS?

 1604

ISO 228-G 1/4 630 40.5 22 24 2106-05-11.00N

ISO 228-G 1/2 630 44.5 27 24 2106-05-12.00N

Options

Part No. with FKM seals XXXX-XX-XX.10N
