SEG1060/SEG1050/SEG1000數顯表介紹：

Measuring systems
Measuring system shock protection Accessories
Power adapters
MultiHandy 2025 8812-20-09.00
MultiHandy 3020 8812-20-11.00
MultiSystem 4070/5070 8812-20-11.00
MultiSystem / MultiControl 8050 8812-02-00.03
8-pin female connector (e.g., Patrick) 8812-00-00.36
5-pin female connector (e.g., CAN, MultiXtend A/f/Thermo) 8812-00-00.34
Country specific power cords MS4070/MS5070
EU 8812-20-12.03
UK 8812-20-12.04
USA / Japan 8812-20-12.05
Australia 8812-20-12.06
Spare batteries
MultiHandy 2025 AK-012120
MultiHandy 3020 8873-08-02.00
MultiControl 4070 8873-09-01.00
MultiSystem 4070/5070 8873-09-01.00
Cases
MultiHandy 2025 3160-00-78.01
MultiHandy 3020 3160-00-72.02
MultiControl / MultiSystem 4070 8859-02-10.02
MultiSystem 5070 8859-02-10.01
Diverse
Soiling protector M16 measuring channel inputs 8822-06-03.15
Top hat DIN rail MultiHandy 2025 / MultiSystem 4070/5070 8854-00-00.02
Car USB Adapter 8812-09-06.00
Car connection cable MultiHandy 3020 / MultiSystem 4070/5070 8824-64-05.00
Car connection cable Patrick 8824-T8-05.00

數顯表SEG1000/SEG1050/SEG1060
SEG1060/SEG1050/SEG1000數顯表
數顯表SEG1060技術樣本下載
SEG1060/SEG1050/SEG1000數顯表概述

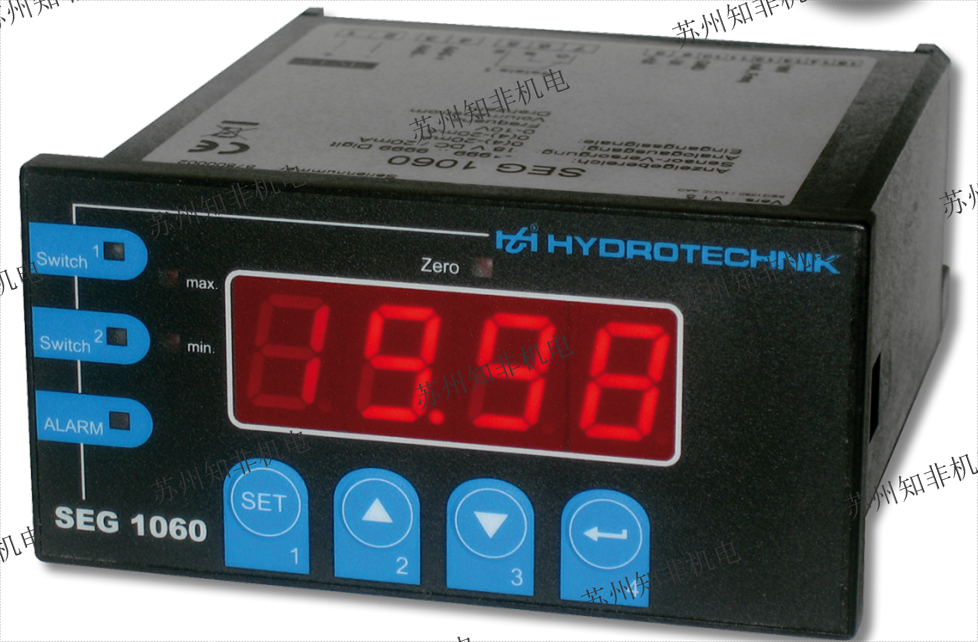

SEG1060/SEG1050/SEG1000數顯表系列面板式數顯表可以很多傳感器通過不同的連接方式使用，是多功能表。該儀表體積小、操作簡單。也是種高速輸入，輸出數顯表，又常在測控系統中的作頻率/電流轉換。
SEG1060/SEG1050/SEG1000數顯表技術參數：
◆ 模擬輸入：0～20mA或4～20mA,0～10V；
◆ 數顯表頻率輸入：0～10KHZ；
◆ 12位模/數轉換；
◆ 測量速度：≥40mS；
◆ LED 顯示，4位，可靠性好，不受距離限制；
◆ 數顯表采用前面板操作
◆ 前面板尺寸96×48mm,根據標準DIN43718；
◆ 數顯表**、最小值采集；
◆ 輸入、輸出之間隔離
◆ 可選：帶切換觸點的報警點和模擬輸出0-20mA或4-20mA,0-10V；
◆ 安裝開孔尺寸43×90.5mm(H×W)；
SEG1060/SEG1050/SEG1000數顯表電氣測量功能及接線
SEG1060/SEG1050數顯表型號或訂貨號：
供電電源 SEG1050數顯表描述 SEG1050訂貨號 SEG1060數顯表描述 SEG1060訂貨號
24VDC 只顯示,3192-03-02.00 只顯示,3192-04-10.00
帶有1路模擬量輸出,3192-03-04.00 帶有1路模擬量輸出 －
帶有2路報警開關輸出,3192-03-06.00 帶有1路報警開關輸出 －
帶有1路模擬量和2路報警開關輸出,3192-03-08.00 帶有1路模擬量和1路報警開關輸出,3192-04-11.00
230VAC 只顯示,3192-03-01.00 只顯示,3192-04-20.00
帶有1路模擬量輸出,3192-03-03.00 帶有模擬量輸出 －
帶有2路報警開關輸出,3192-03-05.00 帶有報警開關輸出 －
帶有1路模擬量和2路報警開關輸出,3192-03-07.00 帶有1路模擬量和1路報警開關輸出,3192-04-21.00
SEG1000數顯表型號或訂貨號：
供電電源 SEG1000數顯表描述 模擬量輸入SEG1000訂貨號 頻率輸入SEG1000訂貨號
24VDC 只顯示,3192-01-02.00,3192-02-02.00
帶有1路模擬量輸出,3192-01-04.00,3192-02-04.00
帶有2路報警開關輸出,3192-01-06.00,3192-02-06.00
帶有1路模擬量和2路報警開關輸出,3192-01-08.00,3192-02-08.00
HySense? MultiEPC數字壓力表
0 … 25 3160-10-40.01
0 … 100 3160-10-16.01
0 … 250 3160-10-17.01
0 … 400 3160-10-15.01
0 … 700 3160-10-39.01

MH2025 MH3020 MS4070 MS5070 MS8050

230VAC 只顯示,3192-01-01.00,3192-02-01.00
帶有1路模擬量輸出,3192-01-03.00,3192-02-03.00
帶有2路報警開關輸出,3192-01-05.00,3192-02-05.00
帶有1路模擬量和2路報警開關輸出,3192-01-07.00,3192-02-07.00
SEG1060/SEG1050/SEG1000數顯表系列產品：
數顯表SEG1000
數顯表SEG1050
數顯表SEG1060
8824-S1-05.00S

M16, 6-pin (high-end) 5 8824-S1-05.00H
Unterminated cable end 5 8824-S6-05.00S
PR 126
M12, 5-pin 5 8824-N3-05.00
M12, 8-pin 5 8824-R7-05.00
Unterminated cable end 5 8824-M8-05.00
PR 130
(4 … 20 mA)
M16, 6-pin 2.5 8824-V3-02.50S
M12, 4-pin 2.5 8824-V2-02.50
Unterminated cable end 2.5 8824-V1-02.50
MultiEPC Unterminated cable end 5 8824-L0-05.00
Patrick數顯表 HySense? CX 197 3402-CX10-D100-000

海德泰尼科hydro Technik測壓軟管S100原裝進口

測壓軟管技術樣本下載
測壓軟管外型圖
測壓軟管訂貨號：軟管連接測壓接頭那頭的接頭為：M16×2.0,連接壓力表那頭的接頭為：M16×2.0
L(mm) **工作壓力 測壓軟管訂貨號 **工作壓力 測壓軟管訂貨號

200 40MPa S100-AC-AC-0020 63MPa S110-AC-AC-0020
300 S100-AC-AC-0030 S110-AC-AC-0030
400 S100-AC-AC-0040 S110-AC-AC-0040
500 S100-AC-AC-0050 S110-AC-AC-0050
630 S100-AC-AC-0063 S110-AC-AC-0063
800 S100-AC-AC-0080 S110-AC-AC-0080
1000 S100-AC-AC-0100 S110-AC-AC-0100
1250 S100-AC-AC-0125 S110-AC-AC-0125
1500 S100-AC-AC-0150 S110-AC-AC-0150
2000 S100-AC-AC-0200 S110-AC-AC-0200
2500 S100-AC-AC-0250 S110-AC-AC-0250
3200 S100-AC-AC-0320 S110-AC-AC-0320
4000 S100-AC-AC-0400 S110-AC-AC-0400
5000 S100-AC-AC-0500 S110-AC-AC-0500

測壓軟管訂貨號：軟管連接測壓接頭那頭的接頭為：M16×2.0,連接壓力表那頭的接頭為：M16×2.0，90°
200 40MPa S100-AC-AL-0020 63MPa S110-AC-AL-0020
300 S100-AC-AL-0030 S110-AC-AL-0030
400 S100-AC-AL-0040 S110-AC-AL-0040
500 S100-AC-AL-0050 S110-AC-AL-0050
630 S100-AC-AL-0063 S110-AC-AL-0063
800 S100-AC-AL-0080 S110-AC-AL-0080
1000 S100-AC-AL-0100 S110-AC-AL-0100
1250 S100-AC-AL-0125 S110-AC-AL-0125
1500 S100-AC-AL-0150 S110-AC-AL-0150
2000 S100-AC-AL-0200 S110-AC-AL-0200
2500 S100-AC-AL-0250 S110-AC-AL-0250
3200 S100-AC-AL-0320 S110-AC-AL-0320
4000 S100-AC-AL-0400 S110-AC-AL-0400
5000 S100-AC-AL-0500 S110-AC-AL-0500

測壓軟管訂貨號：軟管連接測壓接頭那頭的接頭為：M16×2.0,連接壓力表那頭的接頭為：G1/4
400 40MPa S100-AC-FA-0040 63MPa S110-AC-FA-0040
500 S100-AC-FA-0050 S110-AC-FA-0050
630 S100-AC-FA-0063 S110-AC-FA-0063
800 S100-AC-FA-0080 S110-AC-FA-0080
1000 S100-AC-FA-0100 S110-AC-FA-0100
1250 S100-AC-FA-0125 S110-AC-FA-0125
1500 S100-AC-FA-0150 S110-AC-FA-0150
2000 S100-AC-FA-0200 S110-AC-FA-0200
2500 S100-AC-FA-0250 S110-AC-FA-0250
3200 S100-AC-FA-0320 S110-AC-FA-0320
4000 S100-AC-FA-0400 S110-AC-FA-0400

測壓軟管訂貨號：軟管連接測壓接頭那頭的接頭為：M16×2.0,連接壓力表那頭的接頭為：G1/2
400 40MPa S100-AC-FB-0040 63MPa S110-AC-FB-0040
500 S100-AC-FB-0050 S110-AC-FB-0050
630 S100-AC-FB-0063 S110-AC-FB-0063
800 S100-AC-FB-0080 S110-AC-FB-0080
1000 S100-AC-FB-0100 S110-AC-FB-0100
1250 S100-AC-FB-0125 S110-AC-FB-0125
1500 S100-AC-FB-0150 S110-AC-FB-0150
2000 S100-AC-FB-0200 S110-AC-FB-0200
2500 S100-AC-FB-0250 S110-AC-FB-0250
3200 S100-AC-FB-0320 S110-AC-FB-0320
4000 S100-AC-FB-0400 S110-AC-FB-0400
測壓軟管訂貨號：軟管連接測壓接頭那頭的接頭為：M16×2.0,連接壓力表那頭的接頭為：G1/4，90°
400 40MPa S100-AC-FC-0040 63MPa S110-AC-FC-0040
500 S100-AC-FC-0050 S110-AC-FC-0050
630 S100-AC-FC-0063 S110-AC-FC-0063
800 S100-AC-FC-0080 S110-AC-FC-0080
1000 S100-AC-FC-0100 S110-AC-FC-0100
1250 S100-AC-FC-0125 S110-AC-FC-0125
1500 S100-AC-FC-0150 S110-AC-FC-0150
2000 S100-AC-FC-0200 S110-AC-FC-0200
2500 S100-AC-FC-0250 S110-AC-FC-0250
3200 S100-AC-FC-0320 S110-AC-FC-0320
4000 S100-AC-FC-0400 S110-AC-FC-0400
